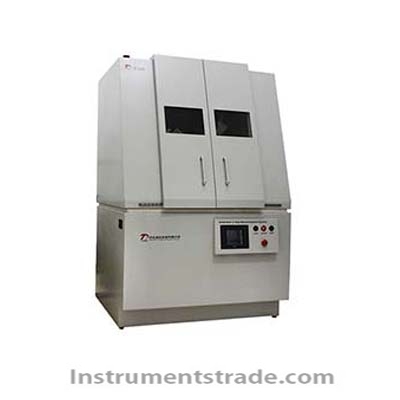

TD -3500 X- ray diffractometer

Product ID:FXys008

Price: US$75,000.00 ~ US$80,000.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTD -3500
    Brand NameYIMA
    Payment TermsT/T, paypal
    Product introduction
    X-ray diffraction is the composition and atomic structure of crystal material and material research and identification of analytical instruments.
    Our company produces the TD - 3500 - x ray diffractometer, will be more mature and stable in the industrial process control PLC technology into the product design concept, make the TD - 3500 - x ray powder diffraction instrument with high precision, high accuracy and good mechanical stability, durable, easy to upgrade, the characteristics of simple operation and intelligent can flexibly adapt to all kinds of industry test analysis and research.
    main features
    High stability X -ray generator
    Multifunction goniometer
    Sound recording control system
    Friendly interface
    Simple maintenance

    Technical Parameters
    Parts Item Specification
    X-ray tube Target Type Cu,Fe,Co,Cr,Mo,W
    Focus 1×10mm2 or 0.4 ×14mm2
    Maximum output power 2.2kW or 2.7kW
    X -ray generator
    (PLC control )


    Maximum output power 5kW
    X-ray tube voltage 10~60kV,0.1kV/step
    X-ray tube current 2~80mA,0.1mA/step
    minimum voltage and current control step width 1kV/step,1mA/step
    Output stability ≤0.005%( Power fluctuation ± 10%)
    Goniometer

    Goniometer structure Vertical goniometer θs-θd structure ( sample level stationary )
    Goniometer scanning radius Standard 225mm (150 ~ 285mm adjustable )
    Scan range -35°~170°
    Scan speed 0.006~1200°/min
    Scan mode θs-θd linkage , θs or θd single action
    Working mode Step by step, continuous, piecewise scan
    The smallest step angle 0.0001°
    Measurement precision ≤0.001°
    2 angle repeatability 0.0001°
    Angle positioning speed 1800°/min()
    recording control unit (detector) Detector type Import SDD, proportional (PC) or flicker (SC)
    The maximum linear counting rate 1 x 107CPS (noise ≤ 1CPS)

    EDS Resolution ≤5%(SDD),≤20%(PC)or  ≤50%(SC)
    Working mode

    Conversion of PLC automatic control differential, integral, automatic PHA, dead time correction
    High Voltage Detector

    0 ~ 2000VDC or 0 ~ 1100VDC continuously adjustable
    High voltage stability better than 0.005%
    Integrated indicators

    Alarm Type

    kV or mA too high , kV or mA low , water alarm ,Overcurrent protection , X-ray tube over-temperature alarm , over power protection
    Security

    Protection system for multiple protection , key positions have deposited lead or lead glass protection , place -ray leakage , protective door interlock protection
    X -ray leakage

    ≤0.1μSv / h (X -ray tube maximum power , before deducting the background )
    Integrated Stability

    ≤0.5% (40kV, 40mA, continuous work 8 hours )
    Dimensions ( main body ) 1170mm×870mm×1800mm
