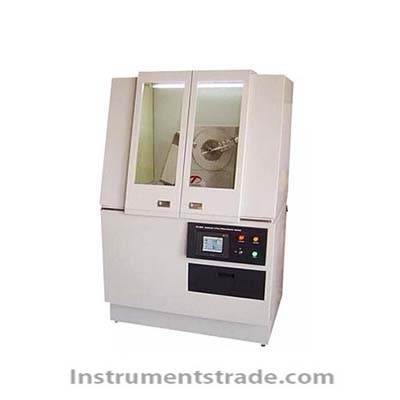

TD -2500 X- ray diffractometer for Crystal structure analysis

Product ID:FXys007

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTD -2500
    Brand NameYIMA
    Payment TermsT/T, paypal
    Brief introduction
    X -ray diffraction is the most widespread application of X -ray diffraction analysis instruments. X -ray diffraction is mainly used in the sample
    Product phase qualitative or quantitative analysis , the crystal structure analysis , the determination of macroscopic stress structural material , large grains
    Small measured crystallinity determination , etc., can be installed in accordance with the actual needs of a variety of special features and accessories appropriate control and
    Computer software , consisting diffractometer with special functions .

    Main features:
    1. Imported programmable logic controller (PLC) technology, which really control , interference , and can achieve high-voltage control section without failure rate.
    2.PLC and computer interface , enabling direct control of the instrument computer terminal pressure switch , lift and shutter switch. A higher degree of automation of the instrument . More stable performance.
    3. protection function, which can effectively prevent damage to the instrument of some external factors .
    4. The X -ray tube with an automatic training function . In the process of opening the high-pressure high-voltage direct lift , do not need to re- close the high pressure operation to extend the life of the X-ray tube and the instrument.

    Technical parameters:
    1. Tube voltage : 10 ~ 60kV automatically controlled by a computer terminal (1kV / step);
    2. Tube current : 2 ~ 80mA automatically controlled by a computer terminal (1mA / step);
    3. The tube voltage , tube current stability ≤0.01%;
    The rated output power : 3kW;
    5. overvoltage, overcurrent , over power , no pressure , anhydrous , X-ray tube over-temperature protection ;

    6. shutter switch automatically controlled by computer terminals ;
    7. The system integrated stability ≤0.3%;
    8. protection system for double protection , and window shutters and shield connections, lead shutter automatically closes the door opened up to the national radiation protection standards, no more than 0.2μSv / h.;



  • Brief introduction
    X -ray diffraction is the most widespread application of X -ray diffraction analysis instruments. X -ray diffraction is mainly used in the sample
    Product phase qualitative or quantitative analysis , the crystal structure analysis , the determination of macroscopic stress structural material , large grains
    Small measured crystallinity determination , etc., can be installed in accordance with the actual needs of a variety of special features and accessories appropriate control and
    Computer software , consisting diffractometer with special functions .
