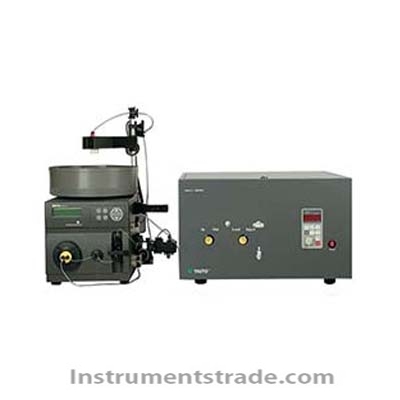

TBE300B - AKTA high-speed counter-current chromatography Brief introduction:
TBE300B - AKTA Prime and from Shanghai with field of life, together with ge healthcare of high-speed countercurrent chromatography system, the system consists of TBE - 300 - b and AKTA Prime, is without any solid carrier of liquid-liquid partition chromatography, especially in the separation and purification of active ingredients of natural products has a unique advantage.
Features:
Double channel pump, but the gradient elution, system balance quickly, provide on-line detection, automatic collection;
Three separation column design, double six valve design, form a complete set of automatic collector; Technical parameters
Power source: 50 to 220 v + 20 v + / - 0.5 HZ
The host power: 200 W
Engine capacity: 260 ml
Sample size: 20 ml
Host size: 563 * 638 * 368 mm
Speed range: 0-1000 revolutions per minute
The separation speed: 700-700 revolutions per minute (stepless frequency control of motor speed)
Velocity range: 0.1-30 ml/min
separation velocity: 1.5 to 2.0 ml/min
Pressure: 0-2 mpa
Wavelength of ultraviolet detector: using mercury lamp - filter to select 254 and 280 nm
A variety of filter optional: 313, 365, 405, 365 and 546 nm
Temperature control module
15 ~ 40 ℃, the temperature range:
Accuracy: 0.5 ℃
Temperature control loop: 1 ~ 10 L/min
Brief introduction:
TBE300B - AKTA Prime and from Shanghai with field of life, together with ge healthcare of high-speed countercurrent chromatography system, the system consists of TBE - 300 - b and AKTA Prime, is without any solid carrier of liquid-liquid partition chromatography, especially in the separation and purification of active ingredients of natural products has a unique advantage.
Features:
Double channel pump, but the gradient elution, system balance quickly, provide on-line detection, automatic collection;
Three separation column design, double six valve design, form a complete set of automatic collector;
