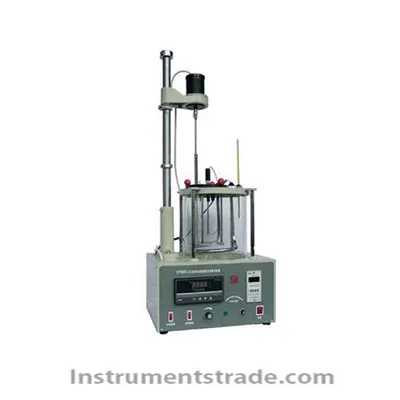

Introduction: SYP3007B-II Oil and synthetic liquid anti-emulsification performance tester According to GB/T7305-87, ASTM D1401 "Petroleum and synthetic liquid anti-emulsification performance determination method" to determine the separation ability of petroleum and synthetic liquid and water. The instrument is suitable for the determination of oils with a kinematic viscosity of 28.8 mm 2 /s to 90 mm 2 /s at 40 ° C. The test temperature is 54 ± 1 ° C. It can also be used to measure oils with a viscosity greater than 90 mm2/s, but the test temperature is 82 ± 1 °C. The instrument also complies with SY/T5645-93 "Technical Conditions for Oil and Synthetic Fluid Anti-Emulsifying Performance Tester". Features: 1. The overall structure of the instrument is compact and the layout is reasonable. 2. Constant temperature bath temperature: precision control, digital display. 3. Constant temperature bath: magnetic stirring, novel structure, using infinitely variable speed, adjustable stirring speed 4. The mixing time is controlled by the time relay, which is set to 5 minutes at the factory, and automatically buzzer when it arrives. 5. There are three measuring cylinder holes on the flap, and its position can be locked and locked after being rotated. 6. The column is equipped with upper and lower positioning rings for convenient operation and positioning. The agitator blade moves up and down without repeating positioning 7. It adopts digital display temperature controller and time relay for easy operation. Technical indicators: Constant temperature water bath: Φ240×255, made of hard heat-resistant glass, equipped with a vertical and rotatable cylinder support frame Measuring cylinder: Φ32×230, made of hard glass, with a marking line in the range of 5-100ml, with a division of 1ml. Red marking line engraved 6mm from the bottom Heater power: 0.5KW Temperature control point: 54 ° C, 82 ° C Temperature control accuracy: ±1 °C Mixer composition: blades, connecting rods Blade Material: Stainless steel Dimensions: length 120±1.5mm, width 19±0.5mm, thickness 1.5mm 2. Connecting rod Material: Stainless steel Size: Φ6mm Stirring motor: speed is 1500±15r/min Power supply: AC220V±10%, 50Hz±5%
