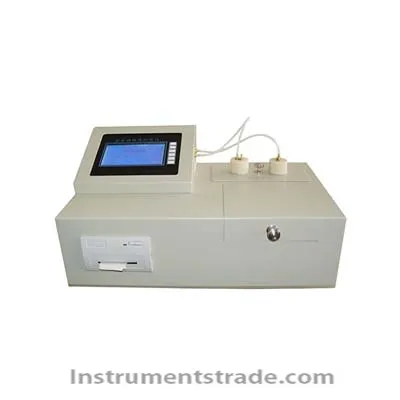

Introduction: The instrument is used for transformer oil, turbine oil acid value determination. The instrument in line with the provisions of the People's Republic of China GB / T 264-83 "Determination of acid value of petroleum products," the requirements. The instrument uses blue LCD large screen display, Chinese menu, no logo button. Microcomputer automatic measurement, automatic printing, testing process to achieve computer automation, intuitive and simple operation. Using magnetic stirring, no noise, safe and reliable, small size. Can meet the needs of oil refineries, power plants and scientific research units, oil analysis, quality inspection is one of the necessary equipment. Technical Parameters: Power supply voltage: ~ 220V ± 10%, 50Hz; Maximum power consumption: <100W; Acid value determination range: 0.001 ~ 0.999 mgKOH / g; Minimum resolution: 0.001 mgKOH / g; Measurement Accuracy: Acid value <0.1: ± 0.005 mgKOH / g; Acid value ≥ 0.1: 5% of the indicated value; Repeatability: 0.004 mgKOH / g; Ambient temperature: 10 ℃ ~ 40 ℃; Relative humidity: <75%. Instrument composition ⑴ printer: print, output test results. ⑵ display: display the relevant test parameters. ⑶ key: no logo button, key function changes according to the display logo changes. ⑷ test bottle stopper: plug in the reagent bottle. ⑸ test bottle room: put two test bottles. ⑹ sample chamber: one can place seven sample cups.
Introduction: The instrument is used for transformer oil, turbine oil acid value determination. The instrument in line with the provisions of the People's Republic of China GB / T 264-83 "Determination of acid value of petroleum products," the requirements. The instrument uses blue LCD large screen display, Chinese menu, no logo button. Microcomputer automatic measurement, automatic printing, testing process to achieve computer automation, intuitive and simple operation. Using magnetic stirring, no noise, safe and reliable, small size. Can meet the needs of oil refineries, power plants and scientific research units, oil analysis, quality inspection is one of the necessary equipment.
