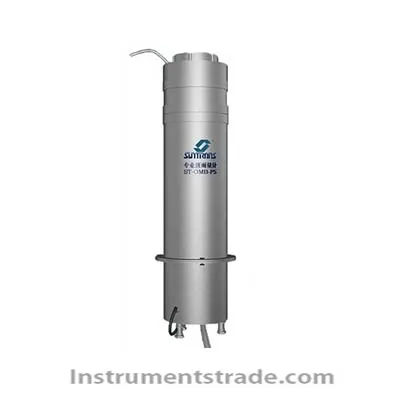

Brief introduction: St-omb-p5 professional rain gauge is mainly developed to solve the current rain gauge in rainfall monitoring measurement error, performance instability and other defects. PIC single chip microcomputer with high performance and low power consumption imported from abroad is adopted to measure the water level value by using the principle of encoder, so as to achieve the purpose of measuring rainfall. It has the characteristics of high measurement accuracy, stable performance, and measuring error less than 0.1mm when measuring heavy rain (30mm/h). At the same time, wireless communication technology can also be used to connect with monitoring software for separate use. Main technical indicators and features: Power supply: DC 12V battery The accuracy of the sensor: + / - 0.1mm Ambient temperature: -30?C ~ 60?C Humidity: 10-95% (relative humidity, no condensation) Protection level: IP64 Output: rs-485 The use of wireless digital transmission technology, installation to avoid a large number of hard wiring Strong lightning protection ability The built-in software watchdog It has the function of "rain sensing" and "software sleep". Only wake up the CPU when it rains to measure rainfall to reduce power consumption
Brief introduction: St-omb-p5 professional rain gauge is mainly developed to solve the current rain gauge in rainfall monitoring measurement error, performance instability and other defects. PIC single chip microcomputer with high performance and low power consumption imported from abroad is adopted to measure the water level value by using the principle of encoder, so as to achieve the purpose of measuring rainfall. It has the characteristics of high measurement accuracy, stable performance, and measuring error less than 0.1mm when measuring heavy rain (30mm/h). At the same time, wireless communication technology can also be used to connect with monitoring software for separate use.
