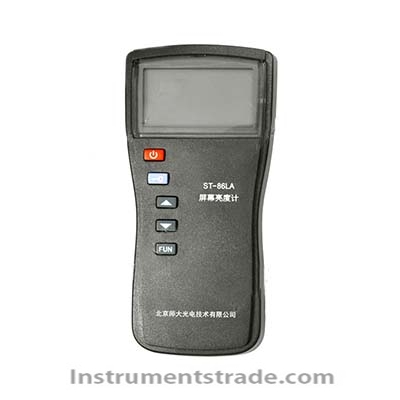

Introduction: The ST-86LA Light and Effective Radiometer is a portable, automatic range test instrument. It uses SMT chip technology, the selection of high-precision low-power digital chip, the instrument shell streamlined design, the detector undergoes rigorous spectral and angle correction, stable performance, applicability. It is designed to measure the brightness of various fluorescent screens and transmissive screens. It is widely used for the measurement of televisions, medical X-rays, CRTs and electroluminescence and fluorescent substances. Features: 1 Spectral and angular characteristics are rigorously calibrated 2 digital LCD display with backlight 3 manual / automatic range switch 4 digital output interface (optional function) 5 low battery reminder 6 automatic delay shutdown 7 have figures to keep 8 Touch the key operation, beep prompt Specifications: The smallest resolution: 10-2 cd / m2 Measurement limit: 19990 cd / m2 Relative indication error: ± 5% V (λ) matching error: f1 ≤ 6% Response time: <1 second Nonlinear, shift, fatigue characteristics, such as error: are in line with the national level of brightness meter standards Use of the environment: temperature (0 ~ 40) ℃; humidity <85% RH Size and weight: 160mm × 78mm × 43mm; 0.2kg Power: 6F22 type 9V laminated battery Total power consumption <0.1VA
Introduction: U-tube oscillation method density meter, electronic liquid density meter is based on the principle of different oscillation frequencies when the double U-tube is filled with different media to measure the liquid density. After pumping the liquid to be tested into the resonant cylinder sensor, the single-chip microcomputer performs measurement data processing, which is fast, direct, and highly sensitive. It is composed of double tuning fork density sensor, vibrating tube circuit, temperature measurement circuit, CPU, display, constant temperature bath, liquid inlet pump and control panel. Use field: Petroleum, diesel, cleaning fluid, lubricating fluid, chemical liquid, flux, crude oil, chemical reagent, stupid, toluene, flavor and fragrance, essential oil, Density testing in alcohol and beverage industries can convert the concentration for alcohol and sulfuric acid solutions!
