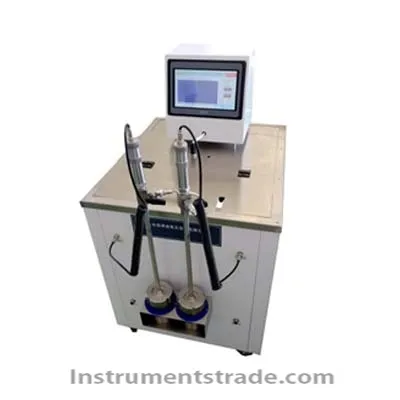

ST-1549 oxidation stability tester Introduction
ST-1549 Lubricant Oxidation Stability Tester is designed and manufactured according to the oil industry SH / T0193 and ASTM D2272 standards. It is suitable for setting the oxidation stability of new and used steam turbine oils with the same composition (base oil and additives). The instrument uses a liquid crystal touch display screen, combined with an embedded control system, full screen monitoring, and can store 100 sets of experimental data. It can be widely used in power, machinery, petroleum, chemical, college, commodity inspection and scientific research industries. Features
1.The whole machine includes bath heating system, motor rotation system, color touch screen man-machine exchange system
2.Adopt LCD touch screen, combined with embedded control system, automatic detection during experiment process, high degree of automation
3.The real-time display of the pressure curve of the sample and the temperature curve of the liquid in the bath
4.Two-shot design, can make two samples at the same time
5.Two oxygen bombs are controlled by two motors separately, the speed is more stable
6.Automatically detect the tightness of the oxygen bomb with high accuracy and good repeatability
7.Can store 100 sets of experimental data for easy reference
8.Automatic casters for easy movement
9.Full Chinese / English interface display (optional) Technical Parameters
Applicable standards: SH / T0193, ASTM D2272
Principle: Rotating oxygen bomb method
Temperature control range: room temperature to 200 ℃ (continuously adjustable)
Temperature control accuracy: ± 0.1 ℃
Rotating oxygen bomb: 2
Heating power: 2500W
Pressure range: 0 ～ 1.5MPa
Pressure accuracy: ± 0.2%
Motor speed: 100 ± 3 rpm
Ambient temperature: 5 ℃ ～ 45 ℃
Relative humidity: 10% ～ 80% Rh
Power supply voltage: 220V ± 10% 50Hz
Introduction
ST-1549 Lubricant Oxidation Stability Tester is designed and manufactured according to the oil industry SH / T0193 and ASTM D2272 standards. It is suitable for setting the oxidation stability of new and used steam turbine oils with the same composition (base oil and additives). The instrument uses a liquid crystal touch display screen, combined with an embedded control system, full screen monitoring, and can store 100 sets of experimental data. It can be widely used in power, machinery, petroleum, chemical, college, commodity inspection and scientific research industries.
