1 Sales DYH-124 rotary oxygen bomb tester,Manufacturer

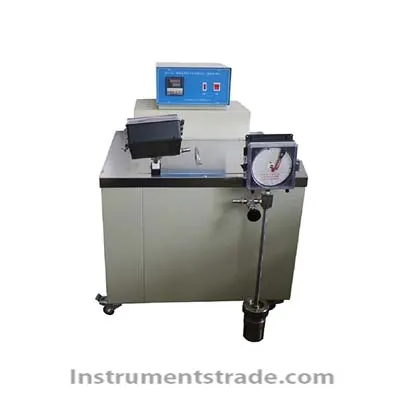

DYH-124 rotary oxygen bomb tester

Product ID:HZSYyhadx004

Price: Please inquire PDF Format
Supply Ability:80SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDYH-124
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    Implementation of the standard: SH / T0193 Lubricant oxidation determination method (rotary oxygen bomb method).
    Scope of application: Applicable to assess the oxidizing properties of new and used turbine oils with the same composition (base oils and additives).
    Features:
    1 mainly by the drive device, oil bath, oxygen bomb, recorder, control system components.
    2 drive device installed in the outer side of the shell, through the tooth belt transmission torque, driving the bevel gear rotation, thus driving the rotating bracket, so that the oxygen bomb in the oil bath can be 100 ± 5r / min uniform rotation, fundamentally solve the traditional Sealing structure of the leakage problem.
    3 oil bath at the bottom with overheating protection device, to be more than the temperature of thermal protection temperature, will automatically cut off the power, to avoid the bath temperature is too high and the risk factors.
    Technical Parameters:
    1, oil bath temperature accuracy: 140 ± 0.1 , 150 ± 0.1
    2, oxygen bomb speed: 100 rpm ± 5rpm
    3, the input power: 3800W
    4, the working power: AC220V ± 10% 50Hz

  • Introduction:
    Implementation of the standard: SH / T0193 Lubricant oxidation determination method (rotary oxygen bomb method).
    Scope of application: Applicable to assess the oxidizing properties of new and used turbine oils with the same composition (base oils and additives).
