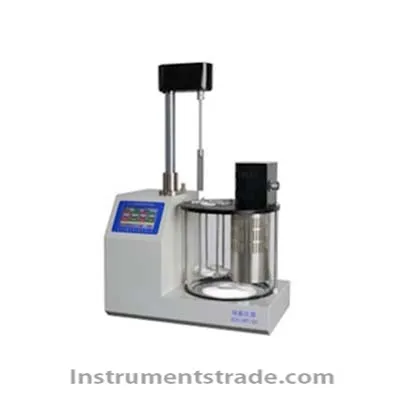

ST-1542 Demulsifier for petroleum and synthetic fluids Introduction
ST-1542 petroleum and synthetic liquid anti-emulsification tester was developed according to GB / T7305 "Petroleum and synthetic liquid water separation test method" and GB / T7605 "Determination of emulsification degree of steam turbine oil during operation" ASTM D1401, suitable for measuring petroleum The ability of products to be separated from water is widely used in power, petroleum, chemical, commodity inspection, universities and scientific research departments. Features
1.5-inch high-definition color touch screen with clear interface display and easy operation
2.Microcomputer control and PID self-tuning temperature control technology; high temperature control accuracy and reliable performance
3.Parameters such as temperature value and fine-tuning temperature can be set
4.Constant temperature of four samples at the same time, separation of 4 samples, improve work efficiency
5.Lifting, stirring, temperature control, etc.
6.Automatically switch to automatic timing after mixing
7.No noise in mechanical transmission, stable and reliable
8.1000 records can be stored for easy reference
9.Full Chinese / English interface display (optional) Technical Parameters
Applicable standards: GB / T7605, GB / T7305 ASTM D1401
Temperature control range: room temperature to 110 ° C (optionally adjustable)
Temperature control accuracy: ± 0.02 ℃
Resolution: 0.01 ℃
Number of experimental holes: 4 holes
Temperature sensor: Platinum resistance (imported A grade PT100)
Stirring speed: 1500 ± 15R / min
Stirring time: 0 ～ 99 minutes (optionally adjustable)
Timing time: 0 ～ 99 hours (optionally adjustable)
Maximum power: ≤800W
Operation mode: LCD touch screen
Storage capacity: 1000
Power source: AC220V ± 10% 50Hz ± 5%
Ambient temperature: 5 ℃ ～ 40 ℃
Ambient humidity: 10% ～ 80% Rh
Dimensions: 535mm * 385mm * 585mm
ST-1542 petroleum and synthetic fluid anti-emulsification tester was developed in accordance with GB / T7305 "Petroleum and synthetic fluid water separation determination method" and GB / T7605 "Operating steam turbine oil demulsification method" ASTM D1401. ST-1542 petroleum and synthetic liquid anti-emulsification tester is suitable for measuring the ability of petroleum products and water to separate. It is widely used in power, petroleum, chemical, commodity inspection, universities and scientific research departments.
