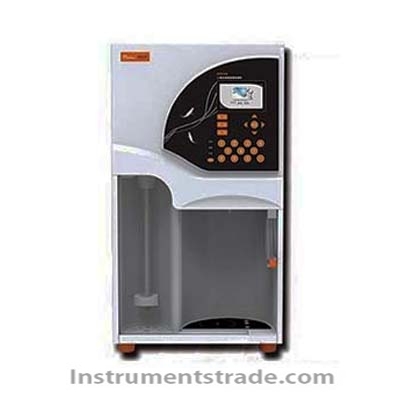

Introduction
This instrument is a according to relevant national standards "and" pharmacopoeia "detecting instrument based on distillation.The instrument can automatically complete reagent addition, distillation and leaching, nitrogen blow, mixing, etc, the whole process of unattended, can automatically detect running state at the same time, automatic stop and alarm when abnormal hints.
Sulfur dioxide residue in food index is one of the relevant departments to control index, analysis of sulfur dioxide residue in Chinese herbal medicine and yinpian also have a clear strict rules in the pharmacopoeia.The instrument is suitable for food, medicines and yinpian products such as sulfur dioxide residue detection.
Features
1. Only 5 ~ 10 minutes/sample test process, save a lot of time, enhance the experimental efficiency.
2. According to the user's Settings, automatic distillation, to the user Settings automatically stop, no artificial unattended, enhance the experimental efficiency.
3. Adopt efficient heating tube heating mode, effectively avoid the explosive boiling phenomena and potential risks.
4. Automatic injection receiving liquid and distilled water, hydrochloric acid solution, to avoid danger and error caused by the artificial filling.
5. Complete automatic leaching distillation, eliminate the residual of pipe hanging wall, make the test results more accurate and reliable.
6. System automatically receive liquid for magnetic stirring, adjusting agitation speed according to the experimental situation.
7. According to the experimental process automatically opened and closed condensate, save time and effort, save water resources.
8.4.3 inches high resolution color LCD screen, real-time man-machine interaction, use convenient and quick.
Technical parameter
Determination of sample weight: solid 10 grams/samples, or less liquid acuities were 20 ml/samples
Measuring range: 0.1 ~ 50 mg
Determination of speed: 5 ~ 10 minutes per sample
Mixing way: magnetic stirring, positive and negative is adjustable
Stirring speed range: 15-1500 RPM
Recovery rate: 99.5% or higher
Repetition rate: the average relative error < 0.5% distillation time: 0-59 minutes
The condensed water consumption: 1.5 L/min
Display: 4.3 inch high resolution color LCD display screen
Rated power: 1.3 KW
The input voltage: 220 VAC plus or minus 10% 50 hz
