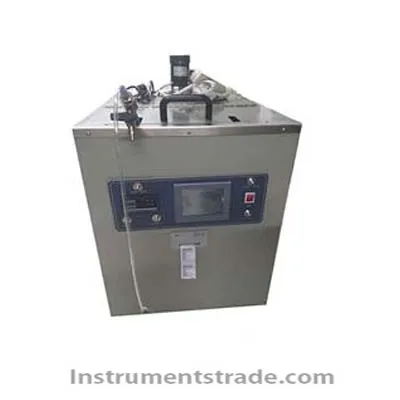

SH0193B Lubricating Oil Oxidation Stability Tester Introduction: The SH0193B Rotating Oxygen Bomb Auto-Oxidation Stability Tester is designed and manufactured according to the standard SH/T0193. It can automatically perform pressure detection, data recording, oxidation time calculation and automatic end of the test. While the test curves and results are displayed on the screen, they are also automatically saved and the operator can print them as needed. After the start of the test, the whole test process is completely automatic, without human intervention, which not only greatly reduces the labor intensity of the operator, but also improves the accuracy of the test results. It is an automatic instrument of choice for modern enterprises. Technical Parameters: 1. Power supply: AC220V±10%. 2. Heating tube power: 2500W. 3, pressure sensor range: (0 ~ 1.6) MPa, accuracy: ± 2 ‰. 4, oil bath temperature control range: room temperature ~ 200.0 ° C continuously adjustable, commonly used 150.0 ° C. 5, temperature control accuracy: ± 0.1 ° C. 6. Test form: Two-elastic design, two samples can be made at the same time, which is convenient for parallel test. 7. Rotating mechanism speed: (100±5)r/min. 8. The angle between the oxygen bomb and the horizontal plane: 30°. Instrument configuration: Teflon cup cover: 2 Oxygen bomb assembly: 2 sets Glass sample cup: 2 Rod mercury thermometer 100～150°C, 0.1 division: 1 Oxygen bomb seal: 2 Test copper wire (diameter 1.5mm, made of Φ47 ring × 21 ring of copper ring): 6 meters Oxygen spring wrench: 1 Oxygen cylinder connection pipe and joint: 1
Introduction: The SH0193B Rotating Oxygen Bomb Auto-Oxidation Stability Tester is designed and manufactured according to the standard SH/T0193. It can automatically perform pressure detection, data recording, oxidation time calculation and automatic end of the test. While the test curves and results are displayed on the screen, they are also automatically saved and the operator can print them as needed. After the start of the test, the whole test process is completely automatic, without human intervention, which not only greatly reduces the labor intensity of the operator, but also improves the accuracy of the test results. It is an automatic instrument of choice for modern enterprises.
