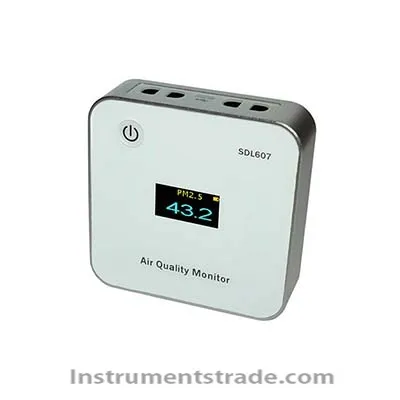

SDL607 Mini Laser scattering PM2.5 PM10 monitor

Product ID:HQKL PM2.5007

Price: Please inquire PDF Format
Supply Ability:20
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSDL607
    Brand NameYM
    Payment TermsT/T western union paypal
    Technical indicators
    Machine size:73*20*73 mm
    Package size:200*150*60mm
    weight
    machine weight: 0.12 kg
    total weight:   0.42 kg
    power supply
    input voltage:  5V
    battery capacity:  1500mAh
    power:      0.5W
    charging current:  0.5A
    charging time:  2.5 hours
    battery working time:30 hours
    measurement parameter
    Measurement principle: laser measurement
    PM2.5 detect range:0-999.9 μg/m3
    PM2.5 resolution: 0.1  μg/m3
    PM10 detect range:0-999.9  μg/m3
    PM10 resolution: 0.1  μg/m3
    Detect particle mimimum diameter:0.3 μm
    environment
    working environment:5—45oC
    store environment:-20—70oC
    Product performance
    1.The latest technology: using the most accurate laser PM2.5 testing technology, responsive, accurate data;
    2.Real-time monitoring: automatically refresh the data every second, all-weather monitoring of air quality
    3.real-time display PM2.5 and PM10 concentrations, particle concentration curve;
    4.LCD numerical, simple and intuitive;
    5.Compact and convenient: a small footprint, easy to carry, easy to operate;
    6.Fast response: using an independent laser sensor, built-in fan, read data fast, stable performance;
    7. Storage features: recently turned 24 hours of data can be stored;
    8.Data interface: You can transfer data via USB to the computer for the curve display, real-time rendering PM2.5
    9.Low power consumption: long battery life, 30 hours of continuous use.
    A machine: real-time display PM2.5 and PM10 concentrations, particle concentration curve;
    LCD: LCD numerical, simple and intuitive;
    Compact and convenient: a small footprint, easy to carry, easy to operate;
    Fast response: using an independent laser sensor, built-in fan, read data fast, stable performance;
    Storage features: recently turned 24 hours of data can be stored;
    Data interface: You can transfer data via USB to the computer for the curve display, real-time rendering PM2.5


  • echnical indicators
    Machine size:73*20*73 mm
    Package size:200*150*60mm
    weight
    machine weight: 0.12 kg
    total weight:   0.42 kg
    power supply
    input voltage:  5V
    battery capacity:  1500mAh
    power:      0.5W
    charging current:  0.5A
    charging time:  2.5 hours
    battery working time:30 hours
    measurement parameter
    Measurement principle: laser measurement
    PM2.5 detect range:0-999.9 μg/m3
    PM2.5 resolution: 0.1  μg/m3
    PM10 detect range:0-999.9  μg/m3
    PM10 resolution: 0.1  μg/m3
    Detect particle mimimum diameter:0.3 μm
    environment
    working environment:5—45oC
    store environment:-20—70oC
