Brief introduction:

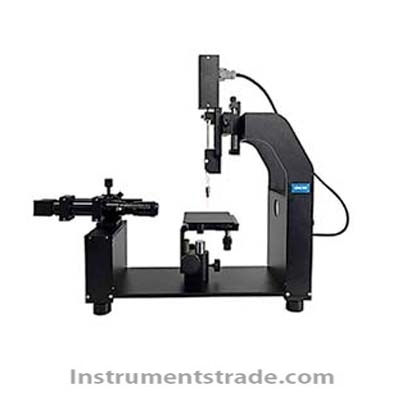

The company's contact Angle measuring instrument/water drop Angle measuring instrument is manufactured by modern technology, the instrument USES advanced CCD digital camera, with high resolution zoom microscope and high brightness LED background light source system, with three-dimensional sample table, the table can be moved up and down, left and right, front and rear and other directions. Achieve micro injection and up and down, left and right precision movement. At the same time, the table with telescopic rod structure is designed, which can adapt to the occasion of increasing material thickness of different users. The frame of the instrument can be adjusted appropriately according to the size of the pattern, which expands the scope of use of the instrument. With the software's correction function, the results of multiple tests can be saved in the same report at the same time, which enables users to better control the material data. The design of the instrument is beautiful, easy to operate and meets the needs of users. Suitable for all kinds of industries to determine the contact Angle of users. Features:
Industrial LED light source with adjustable single wavelength;
The image is clearer;
The service life can reach 50000 hours
High performance imported from Japan ensures better imaging effect.
USB2.0 standard interface, fast data transmission speed, high compatibility
High strength aviation aluminum alloy structure, modular design concept, can be configured with a variety of commonly used measurement accessories
The most professional contact Angle analysis method is more suitable for measuring the contact Angle of various materials
Adopt the international leading calculation method, can automatically identify the reference line and contour line, no human error
High speed automatic operation measurement, and intuitive reading data results
Surface contact Angle analysis module, more simple operation, more accurate results
Video rapid test data can continuously test the shape change of contact Angle
Multiple data export functions, one-key export of measurement data experimental report Technical parameters:
Main machine dimensions: 360mm (width) *550mm (length) *450mm (height)
Net weight of main engine: 11KG
Table size: 120mm*150mm
Table movement: up and down 50mm;Around 50 mm; Around 30 mm
Maximum sample table size: 10"
Sampler movement: up and down 100mm;About 100 mm
Industrial lens movement: front and rear 180mm (fine tuning: 3mm)
Industrial lens: 0.7x * -4.5x hd continuous magnification microscope
CCD: original imported industrial-grade chip;
25 frames per second
Lens Angle: head up
Power supply and power: 220V / 60HZ
