Introduction:

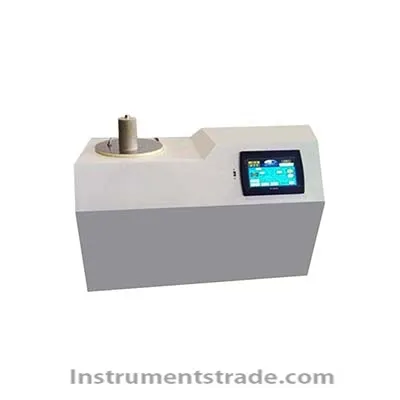

scientz-5000TQC intelligent temperature controlled four-band ultrasonic ultrasonic extractor is a new type of ultrasonic extraction/extraction device using modern ultrasonic technology combined with intelligent cryogenic temperature system as physical means, mainly consisting of high-power ultrasonic generation system, heating system, compressor refrigeration system, Temperature measurement and temperature control system, stirring system and other components.
The instrument adopts touch screen integrated control technology, ultrasonic frequency conversion technology, can be single frequency or mixed frequency extraction of materials, through a beautiful and friendly man-machine interface operation can set data, store data and control the working status. The power setting and temperature measurement circuit enables the microcontroller to achieve ultrasonic transmission power and over-temperature protection and alarm functions. According to the viscosity of the reactants and the temperature, automatic tracking can automatically achieve the best ultrasonic effect. The instrument has a total of four ultrasonic frequencies of 28KHz, 40KHz, 60KHz, and 80KHz, and the material is directly poured into a constant temperature working tank. The temperature sensor measures the temperature of the material. The working tank can be heated and cooled according to the needs of the user, so that the material is at a constant temperature. In the environment, it can be extracted/extracted sufficiently under the direct action of ultrasonic waves. Technical Parameters:
Model: Scientz-5000TQC
Ultrasonic power MAX: 1000W
Power adjustable range: 30%-100%
Ultrasonic frequency: 28KHz, 40KHz, 60KHz, 80KHz
Total ultrasound time: 1-999min can be set
Stirring: 1%-30% can be set (maximum speed 1000r/min)
Compressor power: 500W
Heating power: 2000W
Temperature control method: PID automatic temperature control
Temperature measurement method: PT100 temperature probe
Temperature control range: 15-80°C
Temperature detection accuracy: 0.1°C
Temperature fluctuation: ≦±1°C
Work slot capacity: 6L
Device control mode: 7-inch true color touch screen and SCM integrated control.
Device operation mode: Direct operation on the touch screen, setting temperature, power, time and other parameters
USB communication port: The device comes with USB communication port, plug in USB flash drive, can save the curve and other information to the USB flash drive
Remote communication serial port: This function is an optional item. Users who need it (including PC software) can connect with the computer.
Work tank drain valve: Yes
Work slot cover: Yes
Abnormal alarm function: Yes, equipment with fault self-diagnosis and alarm prompt function
Operation record mode: The device has a working curve screen, and records the temperature and other parameter changes during operation.
