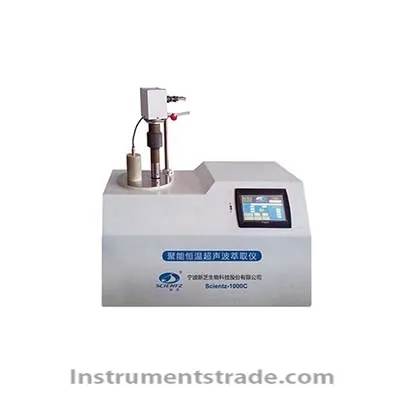

Scientz-1000C shaped energy constant temperature ultrasonic extractor
Introduction: C series concentrated energy ultrasonic extraction instrument is a new ultrasonic extraction/extraction device using modern ultrasonic technology combined with intelligent cryogenic temperature system as the physical means, mainly by high-power ultrasonic generation system, heating system, compressor refrigeration system, temperature measurement and temperature control system. , stirring system and other components. Using a 20KHz focused high-power ultrasonic transducer, the ultrasonic probe is directly immersed in a container for holding the material, the temperature sensor measures the temperature of the material, and the container containing the material is placed in the thermostatic container, and the setting can be set according to the user's needs. The temperature is required to allow the material to be sufficiently extracted/extracted under the direct action of ultrasonic waves in a low temperature and constant temperature environment. Features: 1. Adopt touch screen integrated control technology 2. Ultrasonic uses phase-locked loop frequency automatic tracking technology 3. Friendly and beautiful man-machine interface operation can set data, store data and control working status 4. The oscillation frequency of the transducer is phase-sampled to achieve automatic frequency tracking of the phase-locked loop. 5. Power setting and temperature measurement circuit enables the single-chip microcomputer to realize ultrasonic transmission power and over-temperature protection and alarm function 6.7 inch TFY touch screen display Technical Parameters: Model: Scientz-1000C Ultrasonic power MAX: 1800 W Reaction bottle volume: 1000 ml Probe diameter: Ф20 mm Power adjustable range: 30%-100% Ultrasonic frequency: 20KHz±1KHz Total ultrasonic time: 1-999 min can be set Ultrasonic time: 1-99 S can be set Gap time: 1-99 S can be set Stirrer: 1%-30% can be set (maximum speed 1000 r/min). Users who need it can be purchased with a four-neck bottle. Compressor power: 500 W Heating power: 2000 W Temperature control mode: PID automatic temperature control Temperature measurement method: Two-channel temperature measurement, monitoring the real-time temperature in the reaction system and the constant temperature working tank. Temperature control range: 0-99 °C Temperature control fluctuation: ≦±1 °C Constant temperature volume: 6 L Abnormal alarm function: Yes, the device has fault self-diagnosis and alarm prompt function Operation record mode: The device has a working curve screen, and records the parameter change information such as the running temperature. Device control mode: 7-inch TFT touch screen display and integrated control of single chip microcomputer Equipment operation mode: Direct operation on the touch screen, set parameters such as temperature, power, time, etc. USB communication port: The device comes with a USB communication port, plug in the USB flash drive, and save the curve and other information as a picture to the USB flash drive. Remote communication serial port: This function is optional. Users who need it can purchase (including PC software) and connect to the computer. Reaction bottle: Conventional three-neck bottle, users who need it can choose five-neck bottle
Introduction: C series concentrated energy ultrasonic extraction instrument is a new ultrasonic extraction/extraction device using modern ultrasonic technology combined with intelligent cryogenic temperature system as the physical means, mainly by high-power ultrasonic generation system, heating system, compressor refrigeration system, temperature measurement and temperature control system. , stirring system and other components. Using a 20KHz focused high-power ultrasonic transducer, the ultrasonic probe is directly immersed in a container for holding the material, the temperature sensor measures the temperature of the material, and the container containing the material is placed in the thermostatic container, and the setting can be set according to the user's needs. The temperature is required to allow the material to be sufficiently extracted/extracted under the direct action of ultrasonic waves in a low temperature and constant temperature environment.
