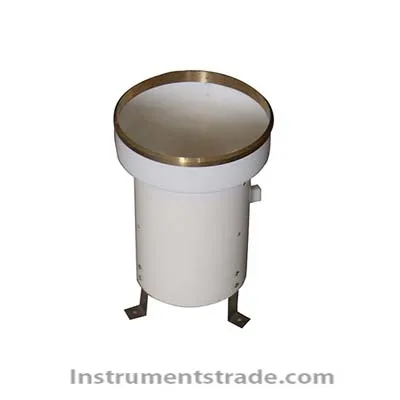

Technical parameters: The rain diameter: Φ 200 + / - 0.3 mm Resolution: 0.2mm Output signal: switch signal Application: Installation: the rain gauge shall be installed in the observation field. The chassis shall be fixed on the concrete base or wooden pile with 3 screws. The installation shall be firm and the nozzle level shall be horizontal. Wiring: connect the cable to the wiring terminal of the rain gauge, and then connect it with the room together. In order to prevent lightning strike, the cable should go through the cable trench, not overhead. Daily maintenance: rain gauge should have a special person to regularly clean the water intake, to prevent dust, leaves, weeds, insects and other water intake will be blocked.
Application: Installation: the rain gauge shall be installed in the observation field. The chassis shall be fixed on the concrete base or wooden pile with 3 screws. The installation shall be firm and the nozzle level shall be horizontal. Wiring: connect the cable to the wiring terminal of the rain gauge, and then connect it with the room together. In order to prevent lightning strike, the cable should go through the cable trench, not overhead. Daily maintenance: rain gauge should have a special person to regularly clean the water intake, to prevent dust, leaves, weeds, insects and other water intake will be blocked.
