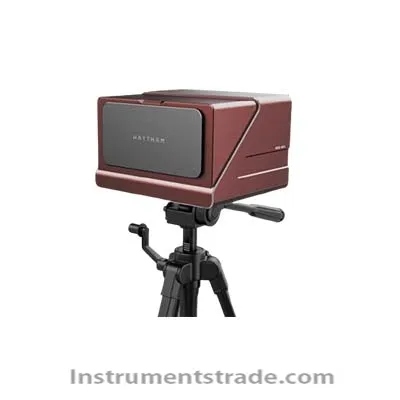

Red Box 2DSH 2D High Temperature Video Streptometer Introduction: Specially designed for material testing in high-temperature environments, it has the characteristics of plug and play and no need for calibration. Through advanced optical and laser speckle technology, the deformation data of materials can be accurately captured even at extreme high temperatures, making it suitable for tensile, compressive, and creep testing of high-temperature alloys, composite materials, and more. Its unique high-temperature optical path system and surface treatment technology ensure measurement accuracy and stability, greatly improving testing efficiency and reliability. Application areas: Stretching, compressing, bending, etc. of flat specimens in high and low temperature environments. characteristic: 1. Non contact measurement 2. Full field measurement 3. Two dimensional measurement 4. Unrestricted by temperature: capable of measuring under high and low temperature conditions, with a temperature range of -190 ℃ -2300 ℃ 5. Configure a high-temperature testing optical system and high-temperature filter to eliminate high-temperature radiation interference 6. Equipped with high-temperature image processing software module 7. Unrestricted by the shape of the sample: plate-like, rod-shaped, sheet-like, linear, thin film, concrete, soft materials, biomaterials, etc 8. Unrestricted by strain range, measurable strain range: 0-1000% 9. Unrestricted by strain direction: capable of simultaneously measuring axial and lateral elongation rates 10. Embedded software, easy to operate 11. Meet the existing JJG762-2007 0.5 level accuracy requirements Technical parameters: Model: Red Box 2DSH Applicable scenario: low-speed loading Sampling frequency: 36Hz Measurement range: MV50mm/MV90mm/MV190mm Displacement accuracy: MM50mm: 0.5 μ m MV90mm: 0.5 μ m MV190mm: l μ m Compliant with standard: JJG 762-2007 Grade 0.5 Displacement range: 1000mm/min Displacement resolution: 0.1 μ m Displacement linearity: 0.5% Displacement range: MV50mm/MV90mm/MV190mm Working temperature: 5-40 ℃ Working voltage: 220V
Introduction: Specially designed for material testing in high-temperature environments, it has the characteristics of plug and play and no need for calibration. Through advanced optical and laser speckle technology, the deformation data of materials can be accurately captured even at extreme high temperatures, making it suitable for tensile, compressive, and creep testing of high-temperature alloys, composite materials, and more. Its unique high-temperature optical path system and surface treatment technology ensure measurement accuracy and stability, greatly improving testing efficiency and reliability. Application areas: Stretching, compressing, bending, etc. of flat specimens in high and low temperature environments.
