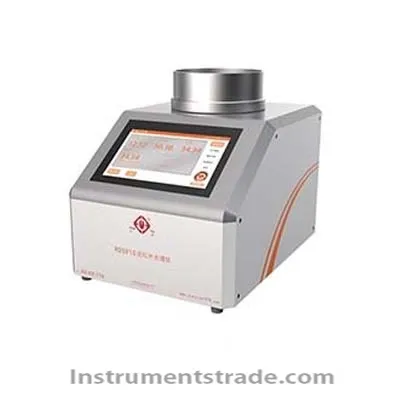

RDS910 near infrared spectrometer Introduction
RDS910 portable near-infrared spectroscopy analyzer is an analytical instrument mainly developed for the detection of feed, flour, etc. It can quickly, accurately and non-destructively detect various indexes such as protein, fat and moisture in feed and flour. It is widely used in the detection and analysis of feed, flour, grain, food, etc. Features
Strong performance, good instrument stability, high signal to noise ratio;
Intelligent system, easy to operate and friendly;
Easy to carry, small size and light weight;
Easy to use, good repeatability of the instrument, simple model transfer;
Easy to connect, multiple interfaces, multiple access methods. Technical Parameters
Measurement object: flour, feed, etc.
Measurement items: protein, oil, moisture, ash, etc.
Measurement time: <3min (depending on the model)
Sample capacity: 300mL
Core detector: Indium gallium arsenide detector
Wavelength range: 950-1650nm
Size: L253mm × W350mm × H245mm
Weight: <10kg
Power supply: 24V/5A
External interface: USB, network port
Display: 7 inch touch screen
Power consumption: 48W (average)
Instrument operating temperature: 5 ° C -45 ° C
Instrument working relative humidity: <75%
Instrument storage temperature: -20 ° C - +60 ° C
Network: WIFI external wireless network card
