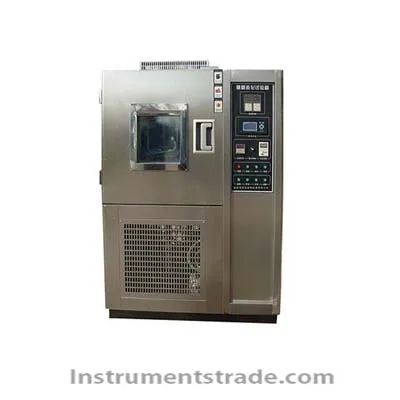

QL-100 ozone aging test chamber

Product ID:WHcy012

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberQL-100
    Brand NameCZWT
    Payment TermsT/T, paypal
    Introduction:
    It is used to evaluate the aging degree of rubber in ozone environment. It can be used in rubber seals, wire and cable insulation sheaths, tires, hoses and other rubber products exposed to a sealed, constant temperature and no light in ozone environment, and then subjected to static stretching and dynamic stretching. After deformation, the degree of change in the degree of cracking of the sample and other physical properties was examined to assess the aging resistance of rubber resistant to ozone to meet the criteria:
    ASTM-D1149 ASTM-D3395 GB/T2951-1997 GB/T7762-2003 GB/T13642-1992
    SAEJ1401
    Technical Parameters:
    Temperature control range: 060°C (adjustable)
    Temperature fluctuation: ≤±0.5°C Temperature uniformity: ≤±2°C
    Humidity control range: ≤ 65% R.H (relative humidity)
    Ozone concentration control range: 10 ~ 1000pphm (direct reading, maximum deviation of 10%)
    Ozone gas flow control: 0 ~ 100L/min
    Time control range: 1min to 9999hours (arbitrary setting)
    Sample rack rotation speed: 110r/min (adjustable)
    Sample tensile speed: up to 20 times per minute; manual stretching distance, dynamic stretching, static stretching, human operation
    Test chamber inner shell material: SUS304 stainless steel
    Sample rack and stretching device material: 316L stainless steel material

  • Introduction:
    It is used to evaluate the aging degree of rubber in ozone environment. It can be used in rubber seals, wire and cable insulation sheaths, tires, hoses and other rubber products exposed to a sealed, constant temperature and no light in ozone environment, and then subjected to static stretching and dynamic stretching. After deformation, the degree of change in the degree of cracking of the sample and other physical properties was examined to assess the aging resistance of rubber resistant to ozone to meet the criteria:
    ASTM-D1149 ASTM-D3395 GB/T2951-1997 GB/T7762-2003 GB/T13642-1992
    SAEJ1401
