PS - 200 semi-automatic sealing membrane for Microplate

Product ID:SHFZwkb002

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberPS - 200
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:

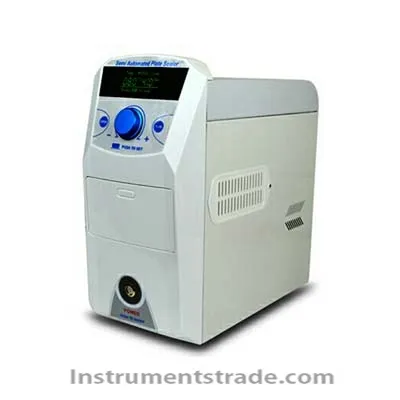

    PS - 200 semi-automatic sealing machine is a by heat sealing all kinds of special heat sealing film to prevent all kinds of MPP (PCR plate, deep hole storage plate, enzyme label plate and cell culture plate) in the detection process of sample loss due to evaporation, leakage and space cross-contamination sealing membrane apparatus. The machine design is concise and easy, simple operation, flexible sealing plate pressure adjustable, standard plate to the deep hole plate is applicable and suitable plate type is wider. Sealing plate temperature and sealing plate can be flexible setup time, rapid heating, the temperature of the real-time display boards. For ordinary glue sealing film, heat sealing film, can be targeted heat sealing film, optical heat sealing membrane (quantitative PCR), permanent heat sealing membrane. Replace manual sealing membrane, to guarantee the sealing plate is firm, the automatic operation of the seal, uniform pressure to ensure uniform sealing membrane effect.
    Features:
    1. The design is concise and easy, cover an area of an area small, simple operation and convenient.
    2. The OLED display, visual Angle is bigger, more energy conservation and environmental protection.
    3. The seal plate adjustable temperature 80 ~ 200 , real-time display board temperature, heating up fast, up to 170 , 300 seconds. Fan cooling, cooling rapidly.
    4. The seal plate pressure can be adjusted according to actual effect, to fit various types of microporous plate and the heat sealing membrane.
    5. Use the microprocessor temperature control, good accuracy, exquisite balance of heat sealing plate structure to ensure the sealing membrane effect consistency.
    6. Heat sealing plate temperature and heat sealing time are adjustable precision, adjusting the amplitude of 1 respectively, and 0.1 seconds
    7. Adopted advanced heating technology, ceramic plate can prevent lead to higher temperature sealing membrane adhesion;
    8. The clear window on both sides of the fuselage design, convenient and clean and maintenance of hot plate, prolong the service life.
    9. Automatic standby function can save energy. No action within 60 minutes, instrument into standby mode, the instrument automatic temperature reduced to 60 , in order to achieve energy saving effect
    Technical indicators:
    1. Heat sealing temperature: 80 ~ 200 (1.0 )
    2. The temperature accuracy: plus or minus 1.0
    3. The temperature consistency: plus or minus 1.0
    4. Heat sealing time: 0.5 ~ 10 SEC. Increasing (0.1 s)
    5. The adaptation of the microporous material: PP (polypropylene)/PS (poly (acrylic)/PE (polyethylene)
    6. Adaptation of plate type: all kinds of standard micropore board: PCR plate (full skirt, the skirt edge and no skirt), deep hole storage plate, enzyme label plate and cell culture plate
    7. Sealing plate height: from 9 mm to 48 mm, no adjustment
    8. Adaptation of sealing plate membrane: foil - polypropylene material
    Transparent polyester fiber - polypropylene material
    Transparent polymer materials
    Thin layer of transparent polymer materials
    Foil material
    9. The maximum input power: 300 w
    10. Overall dimensions (D * W * H) : 380 mm * 180 mm * 180 mm
    11. The weight (kg) : 12 kg



  • PS - 200 semi-automatic sealing machine is a by heat sealing all kinds of special heat sealing film to prevent all kinds of MPP (PCR plate, deep hole storage plate, enzyme label plate and cell culture plate) in the detection process of sample loss due to evaporation, leakage and space cross-contamination sealing membrane apparatus.
