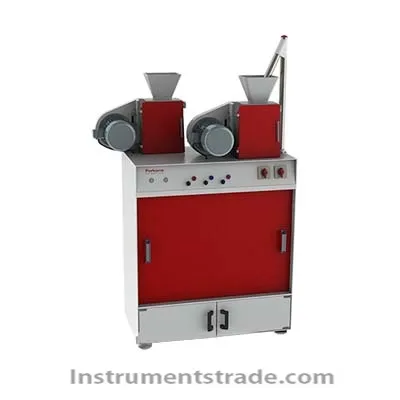

PLM-S large experimental mill Introduction
PLM-S Large-scale experimental mill is a high-performance roll mill for the preparation of powder samples for grain quality analysis. It can be used for wheat, rye and other cereals except for small experimental mills. In addition to tests such as the powder tensile test, the powder rate can also be predicted. The large-scale experimental mill consists of two sets of grinding mills and heart mills. Each set of mills consists of four grinding rolls, and a total of six continuous grinding processes are formed. Due to the separation of the skin grinding and the heart grinding, in addition to the conventional grinding process which can complete the automatic continuous grinding of the skin grinding and the heart grinding, it is also possible to realize a complicated grinding process such as grinding or heart grinding and repeated grinding to meet the requirements of special milling. . Features
Eccentric sleeve rolling distance adjustment mechanism, each pair of grinding roller gap can be adjusted to extend the life cycle of the grinding roller to ensure long-term stable and consistent grinding effect
The grinding roller is hardened, polished, highly efficient, and has good repeatability.
Screen cleaning automatically, easy to operate
The gluten machine can be used to further separate a small amount of flour granules attached to the bran, so that the powder sample is completely equivalent to the actual flour produced in the workshop.
Can get four products at the same time: leather powder, heart powder, secondary powder, bran Technical parameters
Instrument Name: PLM-S Large Experimental Mill
Power supply: AC 380V 50Hz
Grinding amount: 0-100 g/min
Power: 1200W
Flour rate: 65-75 %
Dimensions: Length 94cm Width 53cm Height 150cm
Ash: ≤0.65 % (dry basis)
Weight: about 195Kg
Grinding roller specifications: Φ70×30
Introduction
PLM-S Large-scale experimental mill is a high-performance roll mill for the preparation of powder samples for grain quality analysis. It can be used for wheat, rye and other cereals except for small experimental mills. In addition to tests such as the powder tensile test, the powder rate can also be predicted. The large-scale experimental mill consists of two sets of grinding mills and heart mills. Each set of mills consists of four grinding rolls, and a total of six continuous grinding processes are formed. Due to the separation of the skin grinding and the heart grinding, in addition to the conventional grinding process which can complete the automatic continuous grinding of the skin grinding and the heart grinding, it is also possible to realize a complicated grinding process such as grinding or heart grinding and repeated grinding to meet the requirements of special milling. .
