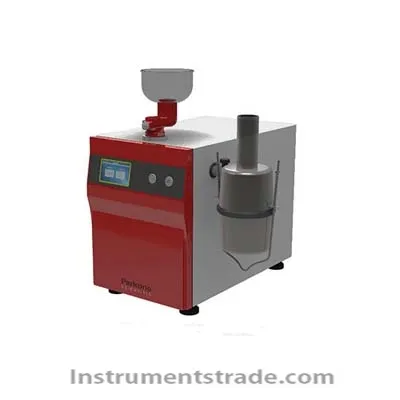

PLM-H250 hammer crusher Introduction
PLM-H250 hammer type cyclone grinding machine is an independent research and development equipment of our company according to market demand. It has the characteristics of low crushing temperature and low noise.
The PLM-H250 cyclone has a "steel hammer" that rotates at high speed and the sample is separated from the grinding chamber by a peripheral screen. Different sieve sizes can be selected to separate samples of different particle sizes. It can be widely used in the determination of gluten quantity, quality, drop value, near-infrared component, grain viscosity and other fineness requirements for sample preparation and determination and analysis of various indicators. Features
High-speed hammering, the sample is powdered, and the high-speed airflow is passed through the stainless steel mesh into the stainless steel integrator to make the required sample.
The box has advanced sound-absorbing materials and low noise.
The motor has a built-in temperature protection circuit that automatically shuts down once the motor exceeds the set temperature.
High-speed airflow automatic cleaning and honing function when the sample is pulverized, no need to stop manual cleaning when the sample is pulverized
Irregularly shaped large particle samples (such as large grain corn), etc., can also be fed and crushed
Hammering high-speed airflow during the pulverization process will cause loss of moisture in the sample. Due to temperature limitation, the temperature inside the chamber is kept at normal temperature, and moisture loss can be minimized. Generally, samples with a water content of 10-20% will be lost during the pulverization process. 2-5% moisture
LCD display for motor speed and cavity temperature for easy operation Technical parameter
Model: PLM-H250
Power supply: AC 220V 50Hz 800W
Studio diameter: 110mm
Sharpening speed: 16800r/min
Sieve plate aperture: 0.5mm, 0.8mm, 1.5mm
Dimensions: 670 × 530 × 800mm (L × W × H)
Weight: 75Kg
Working environment: Temperature 15 to 30 ° C relative humidity 40% to 80%
Introduction
PLM-H250 hammer type cyclone grinding machine is an independent research and development equipment of our company according to market demand. It has the characteristics of low crushing temperature and low noise.
The PLM-H250 cyclone has a "steel hammer" that rotates at high speed and the sample is separated from the grinding chamber by a peripheral screen. Different sieve sizes can be selected to separate samples of different particle sizes. It can be widely used in the determination of gluten quantity, quality, drop value, near-infrared component, grain viscosity and other fineness requirements for sample preparation and determination and analysis of various indicators.
