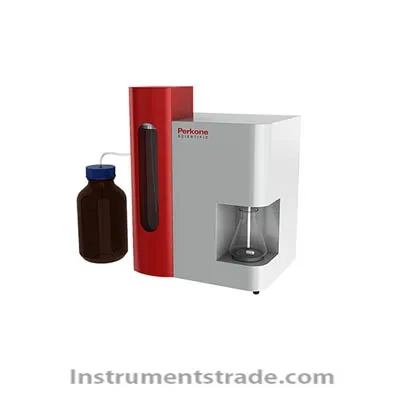

PFC-100 fatty acid analyzer Introduction
The PFC-100 automatic fatty acid analyzer is an important instrument for judging the quality of stored grain by changing the fatty acid value. It changes the end point brought by the phenolphthalein indicator to indicate the end point, and the measurement result is not accurate and the comparability is poor. Such problems, based on potentiometric titration, built a unique experimental method for the determination of fatty acids in wheat, wheat and corn, the test is more accurate.
Feature
Built-in grain, wheat, corn fatty acid value test method, the test is more convenient, one-click test; the results show that mgKOH / 100g dry matter, the instrument automatically converts to save the trouble.
Multiple self-test functions simplify operation and avoid misuse.
Powerful application editing function, the user can generate a special titration mode according to the experiment and store it, the next key click.
Built-in burette, the burette is built into the instrument, and the outside can be observed through the window to make the solution completely separated from the personnel during the operation of the solution to avoid damage to the operator.
Technical parameter
Result range: 0～300mg KOH/100g dry matter result resolution: 0.01mg
Repeatability of measurement results: Parallelity determination of the same sample, absolute difference not exceeding 2mg/100g (in KOH)
Accuracy of measurement results: Compared with the measured values of GB/T 15684-1995T and GB/T 5510-1985, the absolute difference does not exceed 2mg/100g (in KOH)
Minimum feed: 0.0005mL
Volume accuracy: 0.01mL
Measuring range: pH: 0 ~ +20.00; potential: 0 ~ ± 2000mV
Measurement resolution: pH: 0.01; potential: 0.1 mV
Input impedance: 1015Ω
Effective accuracy: ±0.5 mV
Continuous working time of the instrument: ≥24h
Measurement mode: fast titration, precise titration
Automatic titration control: Automatically stop titration when the end of the titration is reached
Method Storage: 10+40
Result storage: ≥100 titration results
Peripheral interface: printer interface; RS232C interface
