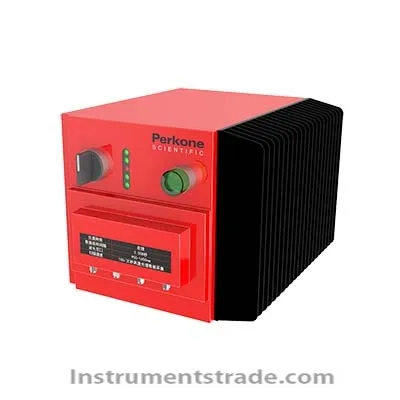

PDA-7350 online near infrared analyzer Introduction
The PDA-7350 is an online near-infrared analyzer for in-line inspection and analysis of grain, grease, flour and feed processing. This instrument can detect the product information in the production process in real time, without waiting for the test results of the laboratory, and trace the entire production process.
The PDA-7350 features a fully enclosed design that reduces external interference with the instrument and reduces operator hassle. It is suitable for the detection of products transported by processes such as powder, granules, whole grains and the like. The analyzer comes with a mounting plate and inspection room for easy installation and inspection. The mounting plate allows the instrument to be mounted on the container, next to the conveyor belt or any other instrument that can detect the sample at any time. The test chamber is suitable for installation in any grain processing workshop. The grain is reliable and repeatable by the instrument, which meets the requirements of near-infrared analysis and ensures the repeatability and accuracy of the analysis. Features
Diode array technology enables full-spectrum detection in real time, preventing image blurring, and is most suitable for detecting flow samples. There are no moving parts in the optical system, which improves the stability of the system.
The instrument lens uses a high-hardness anti-scratch material to extend the life of the instrument and improve the measurement performance of the instrument without frequent regular maintenance.
It adopts industrial standard communication interface, which can be easily integrated into the customer's existing control system. The instrument is equipped with OPC service, and all control systems need to communicate with the instrument through it.
Using a linear light source to return the wavelength axis to the starting point, it is capable of emitting light at the highest peak of a specific wavelength. The accuracy and stability of the wavelength are very good, improving the performance of the curve transfer and the results of laboratory tests and online instrumentation. Consistency.
The instrument comes with dual light sources and automatically switches seamlessly to the second source when the first source reaches its end of life, preventing malfunctions and cumbersome repairs. Technical parameters
Working voltage: 220V 50/60Hz
Measuring speed: >50 times full spectrum / second weight: 7kg
Safety level: IP65 waterproof and dustproof
Rated power: 120W
Wavelength range: 950-1650nm
Weight: 15Kg
Dimensions: 340 × 230 × 220mm (L × W × H)
