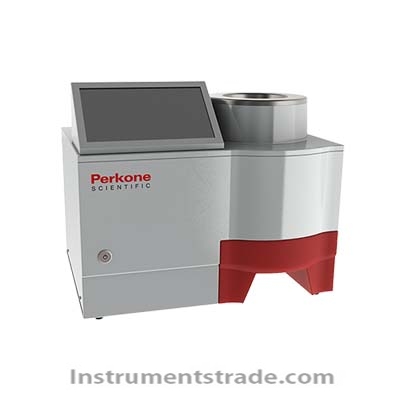

PD-9600 Near Infrared (Cell) Analyzer Introduction
The near-infrared analyzer PD-9600 is a rapid analytical instrument for a variety of physical and chemical components such as moisture, fat, protein, fiber, ash and amino acids in grain samples. Because it does not need to pretreat the sample, does not damage the sample, no pollution, combined with the application of computer technology, it can quickly detect up to ten indicators in one minute, and is widely used in various fields. Features
Use state-of-the-art electronics and the most accurate optical components combined with advanced chemometrics to ensure accurate results
Robust and reliable structure and long service life
The optical chamber is precision machined to ensure the consistency of all instruments, and all equipment test the same sample with the same result
The wavelength is NIST calibrated and the measurement standard is traceable
Large touch color screen and intuitive menu operation, easy to operate and read data
The analysis is fast and safe, the user only needs to select the type of grain to be analyzed, and the sample analysis can be carried out without further artificial setting and modification. Technical parameters
Test subjects: wheat, wheat flour, barley, corn, soybeans and many other grains, oilseeds and flour
Test parameters: moisture, protein, oil, starch, wet gluten, fiber, ash (flour), etc.
Analysis time: ~50s
Sample size / td>: 400mL
Number of subsamples: ≤20/per sample
Analysis principle: scanning grating, transmittance
Wavelength range: 570 ~ 1100nm
Regression options: PLS (partial least squares), ANN (artificial neural network), HR (Honigs regression), taxonomy
Weight: 40Kg
Size: 49x38x38cm
Display: 10.5 inch LCD color touch screen
Interface: Ethernet, 4 USB ports
Introduction
The near-infrared analyzer PD-9600 is a rapid analytical instrument for a variety of physical and chemical components such as moisture, fat, protein, fiber, ash and amino acids in grain samples. Because it does not need to pretreat the sample, does not damage the sample, no pollution, combined with the application of computer technology, it can quickly detect up to ten indicators in one minute, and is widely used in various fields.
