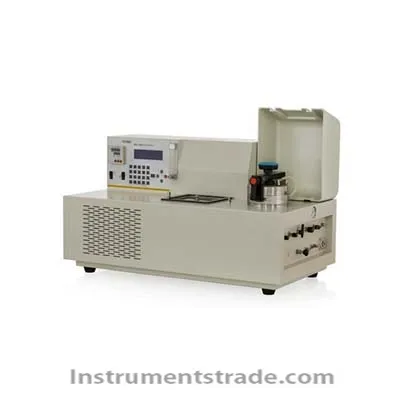

Introduction: OR2 / 410 organic gas permeability test system, a professional organic gas permeation analysis system for thin film samples and container samples, suitable for plastic film materials, bottles, bags, boxes, etc. Quantitative detection of barrier properties of organic substances (gases) in packaging containers. Technical Parameters: Project: Indicators Test range: 0.01 ~ 40 g / m2 • d • 100ppm (conventional) Test gases: Organic substances (eg benzene, esters, alcohols, ketones, aldehydes, ethers, etc.) Test gas flow rate: 10 ~ 40 mL / min Test gas concentration: 10ppm ~ 150ppm Temperature control accuracy: ± 0.1 ℃ Lower carrier gas: high purity nitrogen, the concentration of not less than 99.999% (gas source users-owned) Carrier gas flow: 2 ~ 10 mL / min Interface size: 1/8 inch fluororesin tube Chromatographic carrier gas: high purity nitrogen, the concentration of not less than 99.999% (gas source users-owned) Interface size: Φ3 mm PTFE hose Hydrogen: High purity hydrogen, the concentration of not less than 99.999% (gas source users-owned) Interface size: Φ3 mm PTFE hose Air: dry, oil-free Interface size: Φ3 mm PTFE hose
Introduction: OR2 / 410 organic gas permeability test system, a professional organic gas permeation analysis system for thin film samples and container samples, suitable for plastic film materials, bottles, bags, boxes, etc. Quantitative detection of barrier properties of organic substances (gases) in packaging containers.
