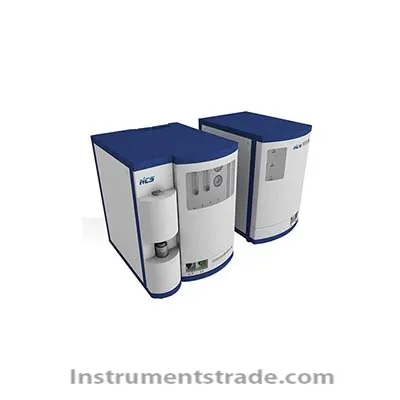

O-3000 pulse infrared thermal conductivity oxygen and nitrogen analyzer Brief introduction:
Oxygen and nitrogen analyzer can accurately measure the iron and steel, rare earth materials, alloy, copper, zirconium, titanium, ceramic, powder materials, and other inorganic materials of oxygen and nitrogen content. The instrument has high sensitivity, good performance, measurement range and analysis results are accurate and reliable. Technical indicators:
1. The scope of analysis
Oxygen: low oxygen: 0.0001% ~ 0.5% * high oxygen: 0.5% ~ 20% *
N: n: 0.0001% ~ 0.5% * high nitrogen: 0.5% ~ 50% *
Note: * change the sample quantity can change the measurement range
2. The analysis accuracy
Oxygen, nitrogen: 1 PPM or 1% *
3. The sensitivity: 0.01 PPM
4. Analysis time: general for 3 minutes
5. Sample weighing: general is 1 g, according to the sample content change according to quantity.
6. Pulse furnace: current 0 ~ 1500 a, power: 7.5 KVA, the highest temperature higher than 3000 ℃.
7. Carrier gas: oxygen and nitrogen analysis: high purity helium (high nitrogen replaceable for high purity argon gas sample)
8. Power supply: 220 vac plus or minus 10%, 50/60 hz, maximum current 50 a.
9. The instrument appearance size: W * H * D: 45 cm by 68 cm x 55 cm
10. Instruments net weight: 180 kg
O-3000 pulse infrared thermal conductivity oxygen analyzer can quickly and accurately measure the oxygen and nitrogen content in steel, rare earth materials, alloys, copper, zirconium, titanium, ceramics, powder materials and other inorganic materials. The instrument has the advantages of high sensitivity, good performance, wide measuring range and accurate and reliable analysis results.
