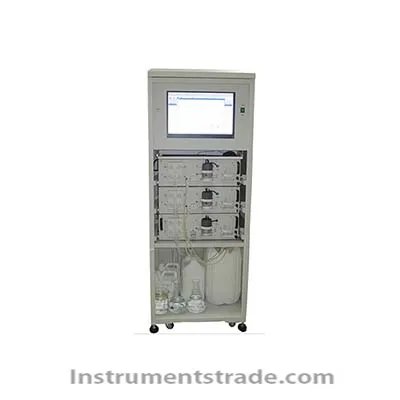

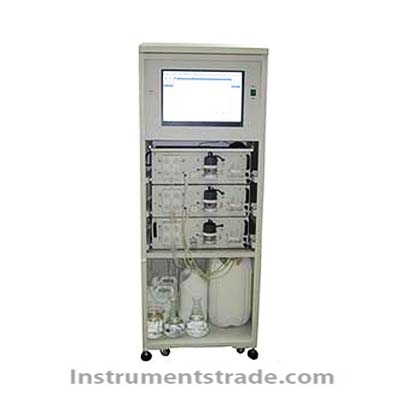

Nanotek9000 Online heavy metal analyser

Product ID：HSWJzjs001

Price: Please inquire PDF Format

Supply Ability:20

Port:SHENZHEN

Product Introduction
Consulting

Model NumberNanotek9000

Brand NameYM

Payment TermsT/T western union paypal

Instruction
Nanotek9000, which has low maintenance cost, adopt “anodic stripping voltammetry” (ASV) technology recognised by international Authoritative Organization. This system real-time monitors various heavy metal concentrations in surface water, drinking water, seawater, effluent streams and waste water etc.
According to its high sensitivity and low cost, ASV already took replace of classical atomic absorption spectrometry, widely make application for medicine, biology and environment analysis.
Test principle:
Nanotek9000 complaints with “anodic stripping voltammetry” (ASV) technology recognised by international Authoritative Organization, detect various metal elements. Firstly analytical solution is being pre-treatment electrolysed under given condition, the analyte of interest is electroplated on the working electrode during a deposition step, and oxidized from the electrode during the stripping step after solution resting for a while. Poisonous reagent doesn’t exist in the whole process; special-made electrode which is long-life and mercury-free guarantee operators’ safe. The whole system adopting peristaltic pump, multiport selector valve and measuring cell etc. form an efficient, low-maintenance flow system, ensure zero-pollution and high-precision.
Technical parameters:

Analysis methods	Anodic stripping voltammetry(ASV)
Range of measurement	(As):0.5 ppb~20.0 ppm (Cu):0.5 ppb~20.0 ppm (Hg):0.1 ppb~20.0 ppm (Zn):1.0 ppb~20.0 ppm (Cd):0.5 ppb~20.0 ppm (Pb):0.5 ppb~20.0 ppm *Auto-adjustment or manual-adjustment
Precision of detection	≤±10%(0-0.2mg/L); ≤±5%(>0.2mg/L)
Analytical module	up to 3 channels (optional)
calibration	Standard auto-calibration, user-programmable configuration.
measurement Time	2-15 minutes(dependent upon concentration of the sample)
Operation system software	Windows 2000 or above
controller	High-configuration professional computer
Display	19” colour LCD
Communication port	RS232/RS485/4-20mA
Communication module	GPRS (optional)
Pre-treatment of sample	Digestion device (optional)
power	300VA
Power supply	AC220V, 50Hz
size	600×600×1600 mm(L×W×H)
weight	<75kg
Mode of deployment	Cabinet style
