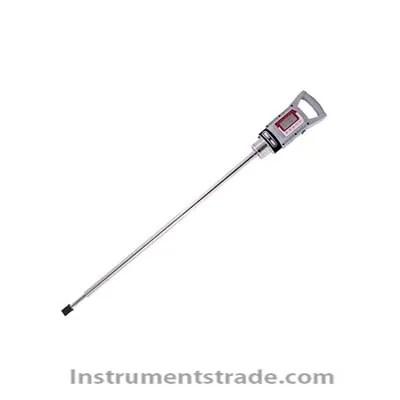

Model 3060-A Integrated Smoke Flow Rate Monitor Introduction: The instrument is a portable monitor, which is widely used in the determination of parameters such as gas flow rate, gas flow rate, gas dynamic pressure, static pressure and temperature in boilers, kiln and various exhaust ducts. Executive standard HJ/T 48-1999 Soot sampler technical conditions Features: 1. One-piece design, combining the pitot tube and the host unit to simplify the pipeline connection and facilitate operation 2. High-precision micro pressure sensor with (-20~85) °C temperature compensation 3. Can set working condition parameters, generate measurement plan, simplify measurement process 4. Synchronous display of current dynamic pressure, static pressure, full pressure, smoke temperature, flue gas flow rate, flue gas flow, standard dry flow 5. Both sides of the pitot tube can be used to automatically identify the airflow direction. The screen display direction is automatically switched according to the posture, and the user-friendly design facilitates on-site operation. 6. With attitude display function, it can correct the operation posture error during measurement and reduce the measurement error. 7. Optional Bluetooth printer print data report 8. Built-in lithium battery, can be used for a long time without external power supply, support fast charge mode, charge 10min, can guarantee 1h 9. Optimize the operation interface, which is more suitable for users' usage habits 10. 2000 sets of file storage capacity and can be expanded
Introduction: The instrument is a portable monitor, which is widely used in the determination of parameters such as gas flow rate, gas flow rate, gas dynamic pressure, static pressure and temperature in boilers, kiln and various exhaust ducts. Executive standard HJ/T 48-1999 Soot sampler technical conditions
