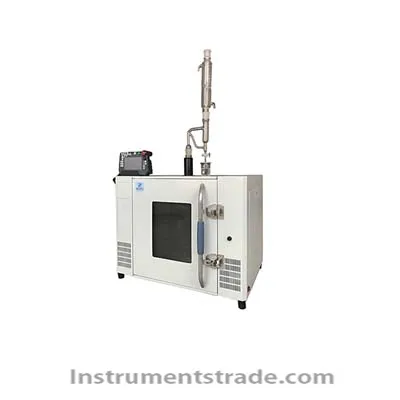

MKX-H5C1 Large Volume Microwave Synthetic Extractor
Introduction: Microwave chemical synthesis extraction reactor, suitable for chemical synthesis extraction reaction in microwave environment under normal pressure; suitable for chemical research (organic synthesis chemistry, inorganic chemistry, analytical chemistry, medicinal chemistry, military chemistry), biomedicine, Materials science, food science, inspection and quarantine, petrochemical industry, and agriculture, forestry and fishery testing fields; the physical and chemical processes in the synthesis and extraction process are accelerated by microwave energy. In many application fields, microwave energy can greatly improve the reaction speed and reduce At the same time, it is easy to complete the synthesis process that the traditional synthesis reaction method is relatively difficult to complete. Features: 1. The open 120L large-capacity atmospheric pressure microwave chemical reactor process platform is suitable for synthesis, extraction and other disciplines 2. Support 30L reaction flask reaction system within 300˚C 3. Support condensation reflux process 4. Support mechanical and electromagnetic double stirring 5. Support the recycling process 6. Support the uninterrupted sampling process of the process 7. Intelligent control system, temperature and power closed-loop controllable 8. The experimental data curve is displayed and the data can be exported 9. Support internal lighting and video surveillance process 10. User-customized and expandable functions: For larger volume reactions, please refer to "Microwave Chemical Reactor Technology" Technical parameter: Microwave power: rated power 4000W/2450MHz, stepless non-pulse continuous microwave power output Microwave reaction chamber design: 304 stainless steel welded together, solid and reliable The inner surface is coated with multi-layer Teflon anti-corrosion coating, which is suitable for use in acid-base corrosion and high-temperature environments, and is easy to wipe and clean Inner cavity size: about 120L, suitable for process assembly of multiple containers Reaction system: 30L glass flask, open reaction system, supports temperature measurement, stirring, condensation and reflux functions Temperature control: temperature range: common working temperature 0 ~ 300 ℃ Adopt infrared and optical fiber dual temperature measurement mode Mixing control: mechanical stirring plus airflow stirring double stirring mode Mechanical stirring: Teflon anchor stirrer is used, driven by a speed-adjustable motor, and the speed is adjustable Air agitation: using nozzle-type air agitation mode Equipment power supply: 380Vac / 50Hz, whole machine energy consumption: 11kW Equipment water supply: cold water system (condensation recovery process) Equipment air supply: air compressor, providing airflow agitation Appearance dimensions: (1) Approx. main body: 880×650×550mm (W×H×D), (2) Approx. top bracket: 500mm Equipment weight: 120kg
Introduction: Microwave chemical synthesis extraction reactor, suitable for chemical synthesis extraction reaction in microwave environment under normal pressure; suitable for chemical research (organic synthesis chemistry, inorganic chemistry, analytical chemistry, medicinal chemistry, military chemistry), biomedicine, Materials science, food science, inspection and quarantine, petrochemical industry, and agriculture, forestry and fishery testing fields; the physical and chemical processes in the synthesis and extraction process are accelerated by microwave energy. In many application fields, microwave energy can greatly improve the reaction speed and reduce At the same time, it is easy to complete the synthesis process that the traditional synthesis reaction method is relatively difficult to complete.
