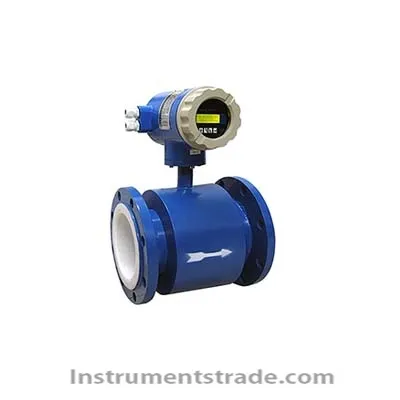

Brief introduction: MG - LDE river flow meter measuring special design with Chinese liquid crystal display backlight wide temperature, functional and practical, direct display, operation easy to use, can reduce the inconvenience by other electromagnetic flowmeter menu in English. In addition our exclusive design more than 4 to 6 electrode structure, further to ensure the accuracy of measurement and at any time without grounding ring, reduced the meter size and the installation and maintenance of trouble. Features: 1. Flow measurement is not affected by the fluid density, viscosity, temperature, pressure and conductivity changes, the influence of sensor induction voltage signal, and a linear relationship between the average flow, so the measurement precision is high. 2. In measuring the pipe flow, so there is no additional pressure loss; Measurement of the pipe have no moving parts, so very long sensor life. 3. Due to the induced voltage signal is formed in the whole space full of magnetic field, is the load average on the surface of the pipe, so the sensor for short straight pipe, the length of 5 times the pipe diameter. 4. The sensor part only lining and electrode contact with the liquid being measured, as long as reasonable selective electrode and lining materials, corrosion resistance and wear resistance. 5. WKLDE converter adopts the most advanced international latest microcontroller (MCU) and surface mount technology (SMT), reliable performance, high precision, low power consumption, stable zero, parameter setting is convenient. Click on the Chinese display LCD, display cumulative percentage flow, instantaneous flow rate, flow velocity, flow, etc. 6. The bidirectional measurement system, the measurable positive flow, reverse flow. The use of special production technology and high quality materials to ensure the performance of the product in a long time remained stable. Technical parameters: Instrument categories: intelligent electromagnetic flowmeter Electrode form: the standard stationary Electrode materials: stainless steel The rated pressure (MPa) : DN100-150 Working temperature: < 180 oc Protection grade: IP68 Converter type: one-piece The shell material: stainless steel The table body flange: stainless steel Power supply: 24 VDC Instrument range: 20 ma corresponding to the largest flow of 2000 m3 / h
Brief introduction: MG - LDE river flow meter measuring special design with Chinese liquid crystal display backlight wide temperature, functional and practical, direct display, operation easy to use, can reduce the inconvenience by other electromagnetic flowmeter menu in English. In addition our exclusive design more than 4 to 6 electrode structure, further to ensure the accuracy of measurement and at any time without grounding ring, reduced the meter size and the installation and maintenance of trouble.
