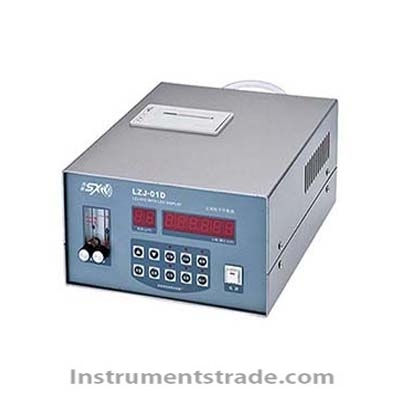

Introduction: LZJ-01D-05-type dust particle counter designed and manufactured according to the specifications of JJF1190-2008 and GB / T 6167-2007 for measuring the concentration of dust particles in a clean environment can be directly used for the cleanliness level of 300,000 to 100 clean environment testing, can automatically determine the cleanliness of the cleanliness level. The instrument uses semiconductor laser light source, high brightness digital tube display, microprocessor control, small size, light weight, simple operation, data can be printed. This product is widely used in electronics, optics, precision instruments, medical and health, biological products, food and beverage and cosmetics fields. Technical Parameters: Flow: 2.83L / min, 10ml / min (dual flow) Self-purification time: ≤ 10min Repeatability: ≤ ± 10% FS Particle size distribution error: ≤ ± 30% Concentration indication error: ≤ ± 30% Sampling capacity: 2.83L / min Safety performance: Insulation resistance> 50MΩ (normal atmospheric conditions) Timing Sampling: automatically determine the cleanliness Automatic conversion unit value: / / 2.83L to / / Power supply: 220VAC ± 10% 50HZ The maximum measurable dust concentration: ≤ 100,000 / 2.83L Particle size sub-file: 0.3,0.5,1,3,5,10 (um) Measurable level of purification range: 100 level to 300,000 level between any level Dimensions: 280 * 125 * 220mm (W * D * H) Weight: 3.5kg Conditions of use: Temperature: 5 ~ 35 ℃ Relative humidity: RH ≤ 75% Normal atmospheric pressure, purify the environment
Introduction: LZJ-01D-05-type dust particle counter designed and manufactured according to the specifications of JJF1190-2008 and GB / T 6167-2007 for measuring the concentration of dust particles in a clean environment can be directly used for the cleanliness level of 300,000 to 100 clean environment testing, can automatically determine the cleanliness of the cleanliness level. The instrument uses semiconductor laser light source, high brightness digital tube display, microprocessor control, small size, light weight, simple operation, data can be printed. This product is widely used in electronics, optics, precision instruments, medical and health, biological products, food and beverage and cosmetics fields.
