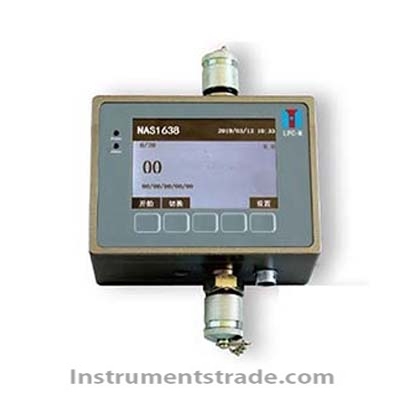

LPC-M oil particle counter (online) Introduction
The LPC-M online particle counter is a photoresist (light shading) counting principle specified by the International Hydraulic Standards Committee. It is specifically used for on-line measurement of oil contamination level detection devices. The utility model has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure and the like. Applicable to engine oil, gear oil, transformer oil (ie insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, can be widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.
Feature
Using the principle of photoresist (shading), using high-precision laser sensor, small size, high precision, stable performance
Suitable for on-site inspection of the site, real-time monitoring of particle contamination in the oil system
Built-in data analysis system that displays real-world data for each channel size and automatically determines sample levels
Optional pressure reducing device for online high pressure measurement
With volume flushing and duration flushing mode, it is convenient for users to use and maintain the device.
Built-in ISO4406, NAS1638, SAE4095, GJB420A, GJB420B, ГOCT17216, GB/T14039 and other particle pollution level standards
Built-in calibration function, can be calibrated according to GB/T21540, ISO4402, GB/T18854 and other standards
Can set any alarm level to achieve pollution or cleanliness detection
RS232 or RS485 interface for connection to a computer or other device for data monitoring and processing
Large storage, optionally stored in the internal or external storage device
Rugged exterior structure for complex working environments
Technical Parameters
Light source: semiconductor laser
Flow rate range: 20-500mL/min
Test sample viscosity: ≤350cSt
On-line detection pressure: 0.1-3Mpa (optional decompression device up to 40Mpa)
Particle size range: 1-500μm (select different types of sensors)
Interface: USB interface, RS232 interface, RS485 interface
Data storage: Provides 1000 sets of data storage space and supports USB storage
Sensitivity: 1μm or 4μm (c)
Limit coincidence error: 10,000 grains / ml
Counting volume: 1-999ml
Counting accuracy: ±0.5 pollution levels
Protection level: IP56
Test interval: 1 second - 24 hours
Test sample temperature: 0-80 ° C
Working temperature: -20-60 °C
Power supply: AC 220V±10%, 50/60Hz or DC12-40V
Weight: 1.1kg
Volume: 115 × 85 × 60mm
