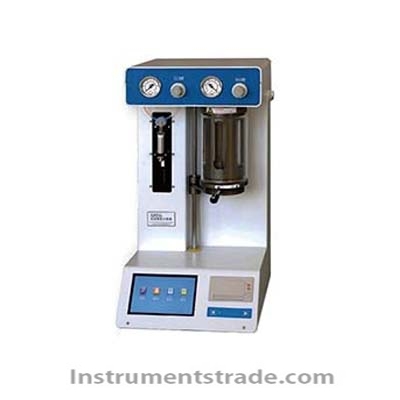

LPC-L oil particle counter (desktop) Introduction
The LPC-L oil particle counter is an instrument specially developed for the detection of contaminated particles in oil according to national and international standards such as GB/T 18854-2002 (ISO11171-1999). The instrument is developed by the principle of light resistance (shading) counting, which fully complies with the corresponding national military standard and international standards. It can provide fast, accurate, reliable and repeatable test results and complete pollution monitoring and analysis report. It is suitable for the detection of particle contamination such as hydraulic oil, lubricating oil, anti-fuel, insulating oil and turbine oil. Can be widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields. Features
Using the principle of photoresist (shading) method developed by the International Hydraulic Standards Committee
High-precision laser sensor with wide test range, stable performance, low noise and high resolution
Using high-pressure syringe pump sampling method, you can set the sampling volume by yourself, the injection speed is stable, and the sampling accuracy is high.
Built-in air purification positive and negative pressure combined injection system, can achieve sample degassing, suitable for different viscosity test
The injection slit and the pipeline adopt imported 316L and PTFE materials, which can directly detect corrosive oils such as phosphonic acid (aviation blue oil).
Built-in multiple calibration curves for calibration with all common standards at home and abroad
Built-in GJB-420B, NAS1638, ISO4406 and ГOCT17216-71 and other common standards, support custom standard testing, and set the required standards according to customer needs
A variety of sampling containers, such as standard sampling bottles or sampling cups, can be used to meet the testing requirements of different industries.
Color touch screen operation, built-in printer, simple and generous structure, easy to operate
Full-featured automatic operation, Chinese input, with data storage and printing functions
Built-in data analysis system to determine sample levels based on standards
RS232 interface for connection to a computer or lab platform for data processing Technical Parameters
Light source: semiconductor laser
Particle size range: 0.8um~500um (depending on the sensor)
Sensitivity: 0.8um (ISO4402) or 3um (c) (GB/T18854, ISO11171)
Detection channel: 8 channels can be set to any size
Resolution: better than 10% (GB/T18854, ISO11171)
Repeatability: RSD<2%
Viscosity range: up to 350cst
Sampling volume: 0.2~1000ml
Sampling accuracy: better than ±1%
Sampling speed: 5mL/min ~80mL/min
Maximum pressure in the pressure chamber: 0.08MPa
Maximum positive pressure of the pressure chamber: 0.8MPa
Limit coincidence error: 10,000 particles / mL
Power supply: AC220V±10%, 50Hz
