LC3050N type semi-preparation system for Drug research

Product ID:FSye020

Price: Please inquire PDF Format
Supply Ability:10SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberLC3050N
    Brand NameBEIJINGCHUANGXINTONGHENG
    Payment TermsT/T, paypal

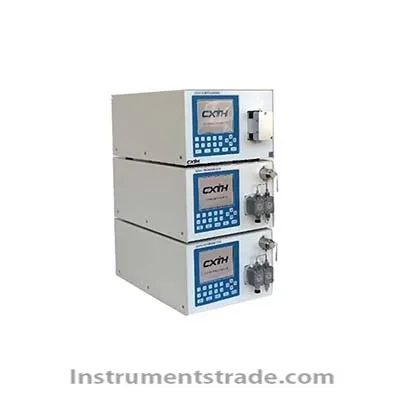

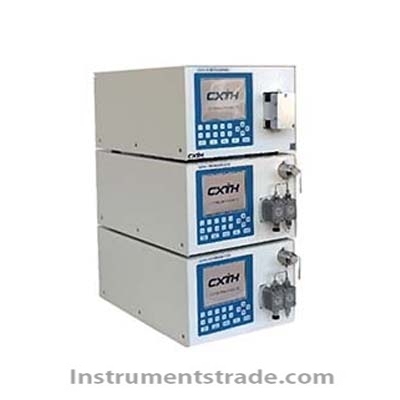

    LC3050N type semi-preparation system
    Introduction
    The LC3050N gradient semi-preparative system was designed for the purification of laboratory-treated gradient elution conditions with a flow rate of 50 mL/min. The flow range is suitable for columns with an internal diameter of 20 to 30 mm, which can meet the purification requirements of a single purification milligram to gram sample for optimum purity and recovery. It is mainly used for the preparation of separation and purification samples requiring gradient elution conditions.
    The LC3050N gradient semi-preparative system is also used for verification and optimization of preparation methods. The preparative chromatographic conditions obtained by analytical liquid chromatography were amplified to a semi-preparative chromatography system, and the preparative chromatographic conditions were verified to further optimize the recommended system.

    Feature
    Solvent transfer double plunger reciprocating pump, double plunger aspiration, small pulsation; electronic compensation, accurate flow rate
    Slow start, stop, maximum/minimum pressure adjustable, automatic storage of user data
    High pressure protection, automatically stops above the set pressure value
    Dynamic mixing, solvent mixing is more complete, repeatability is better 1/16" pipe connection, convenient and practical
    Signal detection range of 190-800nm ​​wavelength, wider application range
    GLP information function, easy to view the total lighting time, number of lighting, replacement lamp number and product serial number and other device information
    Display 320X240 dot matrix large screen LCD display, simple and generous
    Control mode independent control mode: through the LCD panel button control, set all working parameters, making the operation more flexible
    Computer Control Mode 1: Connect via RS232 serial port, use CXTH workstation software control system
    Computer Control Mode 2: Connect via a network cable and use the Clarity Workstation Software Control System
    Mainly used to separate and purify target monomers from mixtures
    Versatility for both positive and negative solvent systems
    Optional versions and bio-compatible versions are available for self-selection

    Technical Parameters
    Working pressure 30MPa
    Flow range (0~50.00) mL/min
    Flow accuracy ±0.5% (5mL/min)
    Wavelength range (190 ~ 800) nm
    Light source Xenon lamp (standard configuration); tungsten lamp (replaceable)
    Band width 8nm
    Detection cell volume 7μL
    gradient
    Gradient error limit ± 2%
    Gradient repeatability deviation limit <1%

  • LC3050N type semi-preparation system
    Introduction
    The LC3050N gradient semi-preparative system was designed for the purification of laboratory-treated gradient elution conditions with a flow rate of 50 mL/min. The flow range is suitable for columns with an internal diameter of 20 to 30 mm, which can meet the purification requirements of a single purification milligram to gram sample for optimum purity and recovery. It is mainly used for the preparation of separation and purification samples requiring gradient elution conditions.
    The LC3050N gradient semi-preparative system is also used for verification and optimization of preparation methods. The preparative chromatographic conditions obtained by analytical liquid chromatography were amplified to a semi-preparative chromatography system, and the preparative chromatographic conditions were verified to further optimize the recommended system.
