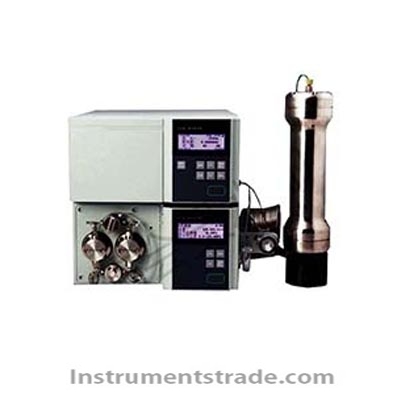

Introduction: The LC600P series preparative liquid chromatography can be prepared by routine laboratory purification, and can be combined with the UV detector to form an isocratic system high-pressure binary gradient system to achieve laboratory preparation and extraction. Widely used in pharmaceutical, chemical, food, biochemical, environmental protection and other fields. technical parameter: P40 series semi-preparative pump Project indicator Flow range 0.01-50mL/min Pressure range 0-30mL, 0-25MPa/30-50mL, 0-15MPa Flow setpoint error ±2% Flow rate stability error 0.50% UV40 series semi-preparative UV detector Project indicator Wavelength range 190-680nm Wavelength repeatability error 0.1nm Wavelength indication error ±1nm Baseline noise 2×10-5Au (under specified conditions) Baseline drift 2×10-4Au/h (under specified conditions) Communication RS232 serial port or ∪SB port connection, software comprehensive control GLP xenon lamp cumulative time, current usage time P120 series preparation pump Project indicator Flow range 0.1-120mL/min Pressure range 0-40MPa Flow setpoint error ±2% Flow rate stability error 0.50% UV120 series preparation UV detector Project indicator Wavelength range 190-680nm Wavelength repeatability error 0.1nm Wavelength indication error ±1nm Baseline noise 2×10-5Au (under specified conditions) Baseline drift 2×10-4Au/h (under specified conditions) Communication RS232 serial port or ∪SB port connection, software comprehensive control GLP xenon lamp cumulative time, current usage time
Introduction: The LC600P series preparative liquid chromatography can be prepared by routine laboratory purification, and can be combined with the UV detector to form an isocratic system high-pressure binary gradient system to achieve laboratory preparation and extraction. Widely used in pharmaceutical, chemical, food, biochemical, environmental protection and other fields.
