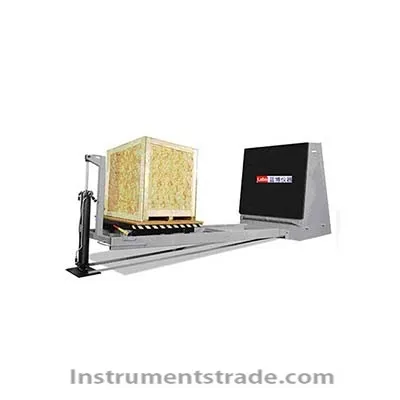

Introduction: Bevel impact testing machines are used to assess the impact strength of transport packages and unit cargo when subjected to horizontal impact and the package's ability to protect the contents. Products comply with the standard GB / T4857 GB / T 2423 ASTM D-775 ISTA Bevel impact test is one of the traditional packaging test methods. The bevel impact test system consists of a wheeled pallet and inclined 10 ° rails. When the test object is placed on the pallet, its surface is perpendicular to the running direction of the pallet, The bottom and the bumper impact; According to the required impact speed, the tray is placed on the rail a certain distance from the baffle, and then the tray slides along the inclined 10 ° track, hitting the baffle. Technical indicators Table size: 2000mmx2000mm can be customized according to user requirements Impact baffle area (W x H): 2500mmx2500mm can be customized according to user requirements Impact speed: 2.1m / s Impact load: 1500kg Power: 220VAC 50Hz Dimensions (length × width × height): 7300mm × 2500mm × 2900mm Net weight: 900Kg
