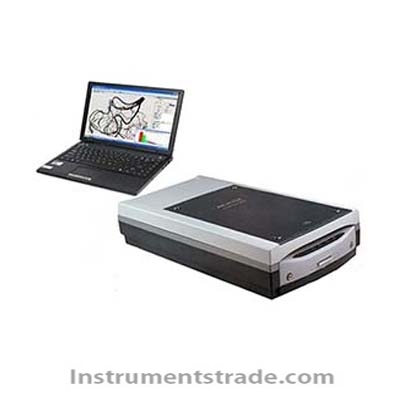

Brief introduction: LA -s combination plant image analyzer system consists of: leaf area, disease spot area analysis, analysis of insect damage of leaf area, leaf color, crop canopy, root analysis module, is a kind of can be used in the field or laboratory comprehensive analysis instrument, the precision is much higher than the traditional analyzer. The global uniform standard, can accurate, rapid, noninvasive determination of various parameters of plants, powerful functions, simple operation. The equipment is widely used in agriculture, forestry, weather etc. Technical indicators: Scanning leaf area measurement error: "+ / - 0.5% (more than 10 cm2 area), Photo leaf area measurement error: "+ / - 0.8% (more than 10 cm2 area) Measurement analysis resolution: 0.01 mm Analysis of time: < 2 seconds Plant roots can analyze measurement: 1) the total length of root; 2) root average diameter; 3) the total area of the root; 4) the root volume; 5) root count; 6) bifurcation count; 7) overlapping count; 8) root diameter class distribution parameters; 9) and nonuniform custom section diameter, can automatically measure the diameter of length, projection area, surface area, volume, etc., and its distribution parameters; 10) root long distribution; Maximum scanning measurement analysis of leaf area: 35.6 cm x 21.6 cm, Biggest root analysis area: 30 cm x20 cm, Minimum resolution size: 0.008 x0.008 mm. Field photograph measuring leaf area: A4. Size calibration: built-in calibration function, realize the size of the semi-automatic calibration, XY to calibration correction respectively; Length measurement: with a magnifying glass function, through the mouse drag accurate measurement; Export data: data analysis of the image, the distribution, the result can be saved, the results output to Excel table, can be used to analyze the output markup.
LA -s combination plant image analyzer system consists of: leaf area, disease spot area analysis, analysis of insect damage of leaf area, leaf color, crop canopy, root analysis module, is a kind of can be used in the field or laboratory comprehensive analysis instrument, the precision is much higher than the traditional analyzer.
