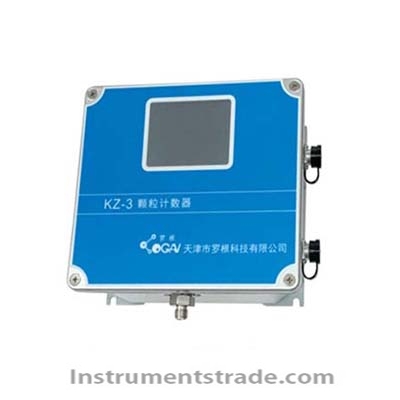

Features: 1. Suitable for on-site on-site detection, real-time monitoring of oil particle pollution degree of various hydraulic and lubrication systems. 2. Adopt the principle of photoresist method (shading method), which has the advantages of fast detection speed, strong anti-interference, high precision and good repeatability; 3. High-precision sensors ensure high-resolution force and accuracy; 4. Built-in NAS1638, ISO4406-1999, ISO4406-2017, ISO4406-1987, GB/T 14039-2012, GJB420B-2006, GJB420B-2015, GJB420A-1996, AS4059E differential, AS4059E accumulation, AS4059F differential, AS4059F accumulation, ROCT17216- 1971, ROCT17216-2001, SAE749D-1963, NAS1638/ISO4406 and other particle pollution degree standards, and can be built according to user requirements. 5. Built-in calibration function, can be calibrated according to ISO4402, GB/T18854-2002 (ISO11171: 1999) and other standards. 6. RS485 interface or RS232 interface or 4 ~ 20mA, can be connected to a computer or host computer to complete the transmission, storage and processing of test data. 7. The instrument can realize continuous automatic online detection, can give the particle number and level in real time, and can set the detection interval time arbitrarily. 8. Real-time monitoring of the flow through the sensor. 9. Optional water activity sensor can be added to detect the micro water content in the oil. 10. Using high-strength aluminum shell, strong anti-interference, high temperature and high pressure resistance, solid shell, can be used in harsh environments. Technical index: 1. Light source: semiconductor laser 2. Particle size range: 1μm～600μm (depending on the selected sensor) 3. Sensitivity: 1μm (ISO4402) or 4μm (c) (GB/T18854, ISO11171) 4. Counting volume: 10ml 5. Relative error of particle counting: ±1 pollution degree 6. Test sample temperature: 0℃～80℃ 7. Working temperature: -20℃～60℃ 8. Storage temperature: -30℃～80℃ 9. Power supply: DC9V or DC12～36V
