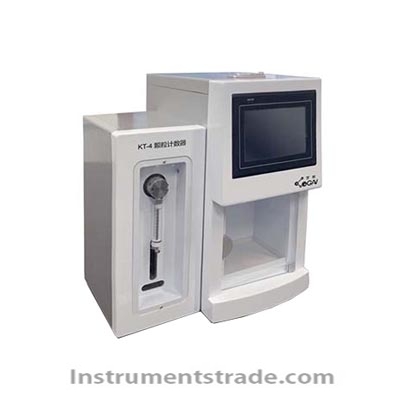

Features: 1. Adopting the principle of photoresist method (shading method), it has the advantages of fast detection speed, strong anti-interference, high precision and good repeatability. 2. High-precision sensors ensure high-resolution force and accuracy. 3. Precision syringe sampling system to achieve constant sampling speed and precise control of sampling volume. 4. Automatic/manual lifting function of sampling head, adjustable sampling head position. 5.7 inch color Android system LCD screen display, touch screen operation. 6. Built-in particle pollution degree standards, and can be built according to user requirements required standards. 7. The instrument can measure the particle size distribution of up to 4096 channels simultaneously. 8. Three calibration curves (latex ball calibration curve, ACFTD calibration curve, ISOMTD calibration curve) can be stored at the same time, and can be easily switched to reduce the conversion error. 9. Test data storage function, 6GB memory, unlimited storage data, easy to archive, retrieve and analyze test data. And equipped with U disk interface, can store data to U disk. 10. The instrument has data integrity, with password login, multi-level authority management, operation log and data backup and other functions. 11. On the basis of multi-level authority management, the instrument can also assign authority to various functions of the instrument. 12. Optional external pin micro printer or A4 paper printer can be directly printed out the test report. 13. A variety of input methods are built-in, which can be input by handwriting to realize the Chinese labeling of the test report. 14. RS232 interface and powerful data acquisition software can realize the labeling, storage, query and PDF test report of detection data of external computer. 15. With magnetic stirring function (electromagnetic stirring) to make the particles evenly distributed. Technical parameter: 1. Light source: semiconductor laser 2. Detection range: 0.8μm～600μm (depending on the selected sensor) 3. Particle size range: 1～100μm (ISO4402) or 4～70μm(c) (GB/T18854, ISO11171) 4. Sensitivity: 0.8μm (ISO4402) or 3μm (c) (GB/T18854, ISO11171) 5. Detection channels: up to 4096 6. Sampling volume: 0.2～500ml, interval 0.1ml 7. Relative error of sampling volume: better than ±0.5% 8. Detection speed: 5～80mL/min (default 15mL/min) 9. Cleaning speed: 5～80mL/min (default 15mL/min) 10. Resolution: better than 10% (GBT18854-2002, ISO11171) 11. Coincidence error limit: 12000～40,000 grains/mL (depending on the selected sensor) 12. Repeatability of particle count: RSD<2% 13. Particle counting relative error: ±5% 14. Test sample viscosity: ≤100cSt 15. Test sample temperature: 0℃～80℃ 16. Working temperature: 0℃～60℃ 17. Storage temperature: -30℃～80℃ 18. Power supply: 100～245V, 49～62Hz 19. Dimensions: 410×255×468mm 20. Net weight of the instrument: 25.5kg
