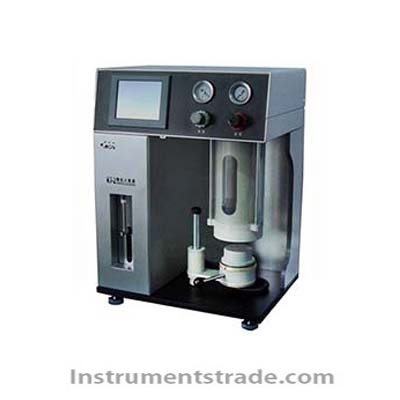

KT-2 Oil Particle Counter

Product ID:WKL003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberKT-2
    Brand NameYM
    Payment TermsT/T, paypal
    Product introduction
    KT-2A desktop by light blockage particle counter (shading method) principle, for the quantity and size of solid particles in liquid detection, can be widely used in aerospace, power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields, the hydraulic oil, lubricating oil, shale oil, transformer oil (oil), oil turbine (turbine oil), gear oil, engine oil, kerosene, water-based hydraulic oil for solid particle pollution detection, and the organic liquid, polymer solution of insoluble particles were detected.
    Uses
    The particle counter is used to detect oil in the size and number of instruments of solid particles , can be widely used in aerospace, electric power, petroleum , chemical, machinery, automobile manufacturing and other fields , can be hydraulic oil, lubricating oil , transformer oil ( insulating oil ) , aviation kerosene, water-based hydraulic oil, oil pollution detection were solid particles , and organic liquid , the polymer solution detects insoluble particles . Oil of particulate contamination is detected special instruments .
    Features
    1.16 Channel
    2.100 set of data storage
    3. The color LCD touch screen
    Technical Parameters
     Light source  Semiconductor lasers
     Particle size range  1- 400um
     Detection channel  16 1um or 4um (C) is set arbitrarily within the range of 100um particle size of the channel
    Sample volume  0.2 ~ 100ml, interval 0.1ml
     Sample volume accuracy   Better than ±1%
    Sampling rate  5mL/min~80mL/min
    Sampling cabin maximum vacuum  0.08MPa
     maximum sampling cabin pressure  0.7MPa
     Viscosity test sample  2~350cSt
     Resolution Better than 10%(GBT18854-2002)
     Coincidence error limit  10,000 / mL (5% coincidence error )
     Repeatability  RSD <2% ( particle count > 5000 / sample volume )


  • Product introduction
    KT-2A desktop by light blockage particle counter (shading method) principle, for the quantity and size of solid particles in liquid detection, can be widely used in aerospace, power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields, the hydraulic oil, lubricating oil, shale oil, transformer oil (oil), oil turbine (turbine oil), gear oil, engine oil, kerosene, water-based hydraulic oil for solid particle pollution detection, and the organic liquid, polymer solution of insoluble particles were detected.
