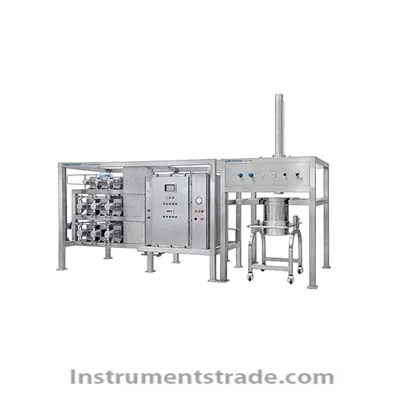

Brief introduction: In order to complete the industrialization nucleic acid drug synthesis of transformation and the development of the key components, industrialize the nucleic acid drug synthesis of localization, meet the market demand, for nucleic acid drug manufacturers to provide cost-effective superior production equipment, fill the blank in this field in our country, Kilotide500 DNA synthesizer arises at the historic moment. Technical parameters: 1. The synthesis column specifications: Material: SST316L Specification: effective column bed height 300 mm, chromatographic column diameter 400 mm Pressure: the largest column pressure drop 2 mpa Pipe size and connection mode: DN10 (3/8 "), the quick release coupling clamp and the seals. Column temperature requirements: 2-30 ℃ 2. The infusion equipment capacity Number of infusion pump: 2 Pump flow rate range: single pump flow rate of 500 ml to 21000 ml/min (3 l ~ 600 l/h) The maximum working pressure: 1 mpa Noise: instrument runtime noise does not affect the normal work of the operators < 60 db equipment within three feet (distance) 3. The column after uv detector Detection wavelength, wavelength detection at the same time, the 190-700 nm, 1 nm step length Bandwidth: 4 nm Nm wavelength accuracy: plus or minus 2 Wavelength repeatability: + / - 0.01 nm Linear range: < 2% deviation of up to 2 AU ats 260 nm with Uracil at pH 2 Noise: < 1 x10-5 AU Drift: < 15 x10-5 au/h 4. Electrical conductivity, thermometer Conductivity detection range: 1 mS/Cm ~ 999.9 mS/Cm Built-in temperature detection: conductivity pool temperature detection Testing method: on-line detection, conductivity pool in series in the line 5. Pressure transmitter Detection range: 0-25 bar Accuracy: + / - 0.2% Signal output: 0-40 ma DC
Brief introduction: In order to complete the industrialization nucleic acid drug synthesis of transformation and the development of the key components, industrialize the nucleic acid drug synthesis of localization, meet the market demand, for nucleic acid drug manufacturers to provide cost-effective superior production equipment, fill the blank in this field in our country, Kilotide500 DNA synthesizer arises at the historic moment.
