Product overview:

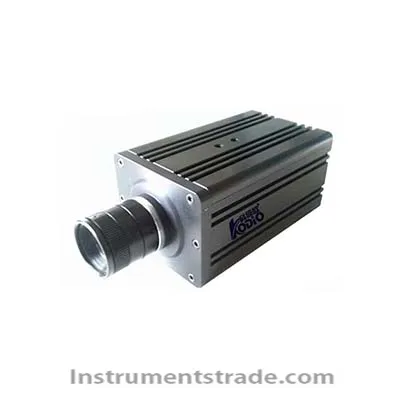

Cordieu road monitoring license plate recognition camera adopts 2 million pixels of high-resolution CMOS image sensor, high-performance DSP as the core of image processing, with external trigger input port, synchronous flash (supplementary light) trigger port. With hd snapshot, recognition and other functions, image resolution up to 2 million pixels, can be widely used in road monitoring system, hd license plate recognition system, parking license plate recognition management system, community entrance snapshot system. Functional features:
1. Snapshot identification camera designed for high-definition monitoring of road vehicles and entrance and exit of parking lot;
2. Two-megapixel 1/2.5 line-by-line scanning CMOS has a maximum resolution of 1600*1200 and a frame rate of 30 frames
3. Industrial-grade image sensor, featuring high frame rate, high sensitivity and low noise
4. Advanced video compression technology is adopted with high compression ratio and flexible processing
5. Support camera switch on and off and LED flash control
6. The device provides external SD card interface with maximum support of 32G
7. Complete functions: heartbeat, alarm, one-button reset, etc
8. Camera with license plate recognition algorithm Technical parameters:
Camera model: kdo-pc6520m
Pixel: 200W 1/2.5 Progressive Scan CMOS
The camera
Sensor type: 1/2.5 CMOS
Minimum illumination: color :0.2Lux @f1.2 black and white :0.03Lux @f1.2
Electronic shutter: 1/30 to 1/100,000 seconds
Lens interface type: C/CS interface
Automatic IRIS: DC driven IRIS
Compression standard:
Video compression standard: h.264 / MPEG4 / MJPEG
Compressed output bit rate: 32 Kbps~16M BPS
Image:
Image format: JPEG
Maximum image size: 1600*1200
30 FPS frame rate:
Image Settings: brightness, contrast, saturation, sharpness, etc. are set by the client or IE
Network functions:
Storage function: support SD card
Support protocol: TCP/IP, DHCP, HTTP, UDP, UPNP, FTP, SMTP, RTP
Common functions: heartbeat, password protection, chip encryption
Interface:
Communication interface: 1 RJ45 10M/100M adaptive Ethernet port, 1 rs-485 interface
Coil I/O input: 2-way optocoupler (switching quantity)
Video output: mixed output of 1-way AV terminals
General specifications:
Working temperature humidity: - 30 ℃ -- 75 ℃, humidity is less than 90% (no condensation)
Power supply: DC12V+-10%
Power consumption: 4W MAX
Case size: WXLXH=58*71*115MM
Weight: 480 g
