JY-P261 anti-corrosion liquid level transmitter

Product ID:CLQTcgq013

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJY-P261
    Brand NameGZJYJMYQ
    Payment TermsT/T, paypal
    Brief introduction:

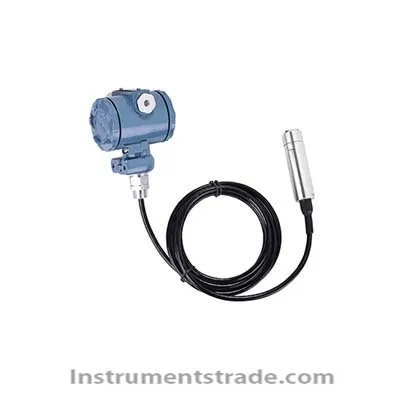

    JY-P261 anticorrosive liquid level transmitter adopts ceramic pressure sensor and is equipped with teflon sleeve outside the cable. Mainly used in acid, alkali and other corrosive media liquid level measurement. The whole transmitter is reliably sealed outside the connection of shell, wire and other links to ensure a long service life of the transmitter.
    The unique internal structure has the function of preventing condensation. Jy-p261 anti-corrosion liquid level transmitter is widely used in chemical industry, environmental protection, medicine, industrial process control and many other occasions.
    Product features:
    1. Anti-condensation, suitable for outdoor and other poor site conditions, to ensure the long-term stability of product performance
    2. Compared with the ordinary input type liquid level meter, the product accuracy has been significantly improved and the anti-interference ability is strong
    3. It is equipped with polyester rubber ring, waterproof seal, and the protection level of the watch head can reach IP67.
    4.Phi with a variety of structure sizes, a minimum 19mm special function can be customized
    Technical parameters:
    Power supply: 24VDC
    Output signals: 4 ~ 20mA, 1 ~ 5V, 0 ~ 10mA, 0 ~ 20mA, 0 ~ 5V, RS485;
    Range: 0 ~ 0.5m...
    200 m water column;
    Compensation temperature: 0 ~ 70
    Medium temperature: 0 ~ 100
    Ambient temperature: 0 ~ 85
    Overload pressure: 200%FS
    Long-term stability: less than 0.2%FS/ year
    Material: ptfe, ceramics, ABS
    Comprehensive precision: 0.1, 0.3, 0.5 level optional
    Zero temperature drift: plus or minus 0.03% FS /
    Sensitivity temperature drift: plus or minus 0.03% FS /

  • Brief introduction:
    JY-P261 anticorrosive liquid level transmitter adopts ceramic pressure sensor and is equipped with teflon sleeve outside the cable. Mainly used in acid, alkali and other corrosive media liquid level measurement. The whole transmitter is reliably sealed outside the connection of shell, wire and other links to ensure a long service life of the transmitter.
    The unique internal structure has the function of preventing condensation. Jy-p261 anti-corrosion liquid level transmitter is widely used in chemical industry, environmental protection, medicine, industrial process control and many other occasions.
