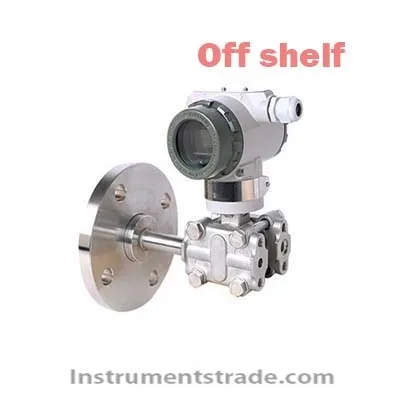

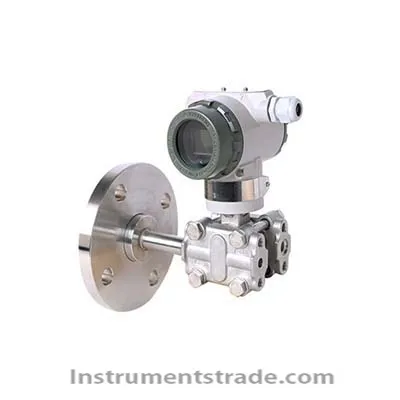

Brief introduction: JY-3051LT single flanged pressure/liquid level transmitter is a new type of transmitter that our company introduces foreign advanced technology and equipment. The key raw materials, components and parts are all imported. The whole machine has been strictly assembled and tested. Jy-3051lt single flange pressure/liquid level transmitter can be used to measure the precision of liquid level and density of various containers, there are two kinds of flat flange and insert flange, which are suitable for the measurement of high viscosity medium or suspension liquid. Product features: 1, super measurement performance, for pressure, differential pressure, liquid level, flow measurement 2, miniaturized (2.4kg) all stainless steel flange, easy to install 3. Process connection is compatible with other products to achieve the best measurement 4. H alloy sheath sensor (patented technology) is adopted for high quality cold and heat stability 5. Intelligent transmitter with 16-bit computer 6. Standard 4-20ma, digital signal based on HART protocol, remote control 7. Support upgrading to fieldbus and field-control-based technologies. Technical parameters: Product model: jy-3051lt Product name: single flange pressure/level transmitter Power supply voltage: 24VDC, etc Measuring medium: liquid, gas, water, oil, etc. (compatible with stainless steel) Range: 0-10 meters (customizable) Power supply voltage: 24VDC Analog output: 4-20ma Protection level: IP67 Product installation: flange installation Range ratio: 100:1 Measurement rate: 0.2s Static pressure: 4, 10, 25, 32MPA Accuracy: + / - 0.1%, + / - 0.25%, + / - 0.5% Stability: the absolute value of the basic error within the maximum range for six months Vibration effect: in any axial direction, the vibration frequency of 200HZ is, and the error is 0.05%/g of the upper limit of the measurement range Power supply impact: less than 0.0059%/V of the output range Load impact: if the power supply is stable, the load has no impact
Brief introduction: JY-3051LT single flanged pressure/liquid level transmitter is a new type of transmitter that our company introduces foreign advanced technology and equipment. The key raw materials, components and parts are all imported. The whole machine has been strictly assembled and tested. Jy-3051lt single flange pressure/liquid level transmitter can be used to measure the precision of liquid level and density of various containers, there are two kinds of flat flange and insert flange, which are suitable for the measurement of high viscosity medium or suspension liquid.
