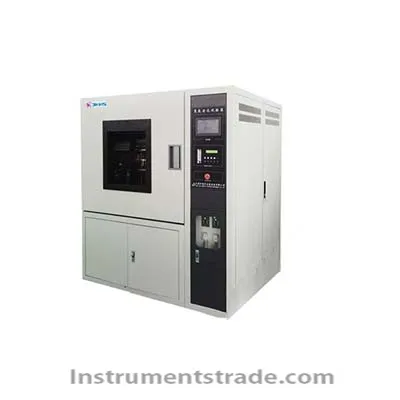

JKQL-150L Ozone aging test chamber

Product ID:WHcy011

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJKQL-150L
    Brand NameJKHS
    Payment TermsT/T, paypal
    Introduction:
    The ozone aging test chamber can simulate and accelerate atmospheric ozone aging conditions, and can obtain practical results similar to or reproducible test results in a relatively short period of time. It is mainly used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheath and other products. Ozone aging resistance and anti-ozonant protection performance under static and dynamic stretching, so as to take effective anti-aging measures and increase the service life of rubber products. It can also be used for the ozone fastness test of textiles.
    Technical Parameters:
    Temperature range: RT+10°C60°C
    Temperature uniformity: 2°C
    Temperature fluctuation: ±0.5°C
    Temperature deviation: ±2°C
    Ozone concentration range: 200 ~ 300ppm (high concentration, wire and cable industry), 0 ~ 1000pphm (low concentration, rubber hose, automobile tire industry) (direct reading, direct control)
    Ozone concentration deviation: ±10%
    Sample back speed: (20-25)mm/s
    Feeder Stretching Frequency: 0.5±0.25Hz
    Test chamber gas flow rate: 8-16mm/s
    Ozone Concentration Detection: Electrochemical/UV Analysis
    Ozone generator principle High pressure silent discharge
    Test method: Static strain test (rotation) and dynamic strain test (rotation + tension)
    Safety configuration: Leakage protection, short circuit protection, compressor high and low voltage protection, compressor over-current protection, fan over-current protection, over-temperature protection, voice alarm, etc.
    Shell: High-quality cold-rolled steel plate surface spray
    Liner: High quality 304 stainless steel plate
    Insulation material: Polyurethane foaming + ultrafine glass fiber
    Seal: Silicone rubber seal
    Observation window: hollow tempered glass window, with lighting device, automatic defrosting
    Sample lead: one ¢25mm or ¢50mm
    Heater: Nichrome heater
    Fan: Stainless Steel Centrifugal Fan
    Refrigeration method: mechanical compression single refrigeration, France "Tai Kang"
    Cooling method: air-cooled
    Controller: imported programmable touch screen temperature controller, software independent intellectual property rights, set accuracy: temperature 0.1 °C, indicating accuracy: temperature 0.1 °C, resolution: 0.1 °C, humidity setting accuracy: 0.1% R.H
    Recording device: USB flash drive
    Communication (optional): RS485 or RS232 interface, PC operating software
    Temperature and humidity sensor: platinum resistance PT100Ω
    Other components: France Schneider, Japan Omron

  • Introduction:
    The ozone aging test chamber can simulate and accelerate atmospheric ozone aging conditions, and can obtain practical results similar to or reproducible test results in a relatively short period of time. It is mainly used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheath and other products. Ozone aging resistance and anti-ozonant protection performance under static and dynamic stretching, so as to take effective anti-aging measures and increase the service life of rubber products. It can also be used for the ozone fastness test of textiles.
