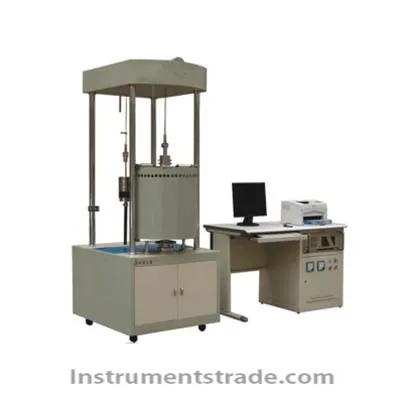

JH-II-9 Material Load Softening Temperature Tester
Introduction: The JH-II-9 material load softening temperature tester can be used to test the high temperature load softening temperature range of ceramic refractory materials, graphite materials, etc. The heavy softening temperature indicates the resistance of the material to the simultaneous action of high temperature and load, and also characterizes the material chat The softening temperature range for obvious plastic deformation. The equipment is manufactured in accordance with the requirements of YB/T 370 "Experimental Method for the Softening Temperature of Refractory Products under Load (Non-differential-heating method)". The JH-II-9 material load softening temperature tester also meets GB/T5989 and ISO1893: 1989 . There are multiple structures to meet the load softening temperature of different materials. Test purpose. technical parameter: (Two choices of difference method and non-difference method) 1. Heating temperature: the limit can reach 1650℃; 1750℃ (two options are available) Corresponding use temperature: 1600°C, 1700°C, temperature control accuracy: up to heating section: less than ±2°C. 2. Heating rate: 0-20℃/min; can be set arbitrarily 3. Heating method: manual or automatic program heating; more than 30 sections of program heating 4. Deformation measurement range (mm): 0～10, the indication error of deformation measurement: not more than 0.03mm; 5. Sample size: height 50±0.5mm; diameter 36±0.15mm; Or height 50±0.5㎜; diameter 50±0.35㎜; 6. The height of the average temperate zone is not less than 75mm; the temperature difference is not more than 20℃; 7. Maximum power: 3.5KW to 6KW; 8. Sample load pressure: 0.2Mpa; 0.1Mpa, etc. 9. The pressure method can choose direct pressure digital display, and the load range (N): 100～1000, accurate to 1N force. 10. The furnace body has an open furnace body, which is very convenient to replace the upper and lower pressing rods. Independent loading system makes loading accuracy higher. 11. It can be connected to a computer to realize automatic control, Chinese operation interface, and automatic printing of test reports.
Introduction: The JH-II-9 material load softening temperature tester can be used to test the high temperature load softening temperature range of ceramic refractory materials, graphite materials, etc. The heavy softening temperature indicates the resistance of the material to the simultaneous action of high temperature and load, and also characterizes the material chat The softening temperature range for obvious plastic deformation. The equipment is manufactured in accordance with the requirements of YB/T 370 "Experimental Method for the Softening Temperature of Refractory Products under Load (Non-differential-heating method)". The JH-II-9 material load softening temperature tester also meets GB/T5989 and ISO1893: 1989 . There are multiple structures to meet the load softening temperature of different materials. Test purpose.
