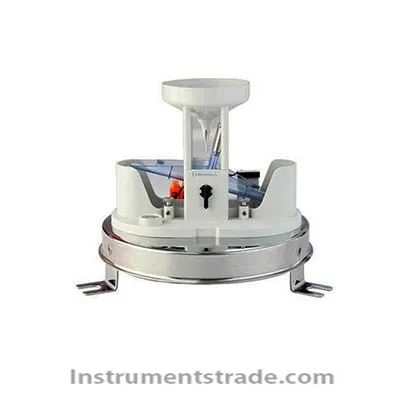

Summary: This instrument is a primary instrument for precipitation measurement, and its performance conforms to the national standard GB/ t11832-2002 "tipping bucket rain gauge" requirements. This instrument can be used with jbd-1, jbd-2 rainfall alarm, telemetry terminal and other equipment, widely used in water and rain telemetry, rainstorm, mountain flood, debris flow alarm. The tilting Angle of the tilting bucket has been adjusted and locked in the optimal tilting Angle position when the instrument leaves the factory. When installing the instrument, only the tilting bucket and the base level need to be adjusted according to the requirements of this manual can be put into use, and the tilting Angle adjustment screw cannot be adjusted on the spot. Main technical parameters: 1. Size of bearing nozzle: Φ 20000.60 mm; acute angle of cutting edge: 40 °~ 45 ° 2. Resolution: 0.5 mm to 1 mm; 3. Rain-intensity range: 0.01mm ~ 4mm/min (maximum rain-intensity of 8mm/min is allowed) 4. Measurement accuracy: less than or equal to 3% 5. Signaling mode: on and off signal output of two dry reed pipes 6. Work environment: Environment temperature: - 10 ℃ to 50 ℃ Relative humidity;< 95% (40 ℃) 7. Size: φ 216mm × 350mm
Summary: This instrument is a primary instrument for precipitation measurement, and its performance conforms to the national standard GB/ t11832-2002 "tipping bucket rain gauge" requirements. This instrument can be used with jbd-1, jbd-2 rainfall alarm, telemetry terminal and other equipment, widely used in water and rain telemetry, rainstorm, mountain flood, debris flow alarm. The tilting Angle of the tilting bucket has been adjusted and locked in the optimal tilting Angle position when the instrument leaves the factory. When installing the instrument, only the tilting bucket and the base level need to be adjusted according to the requirements of this manual can be put into use, and the tilting Angle adjustment screw cannot be adjusted on the spot.
