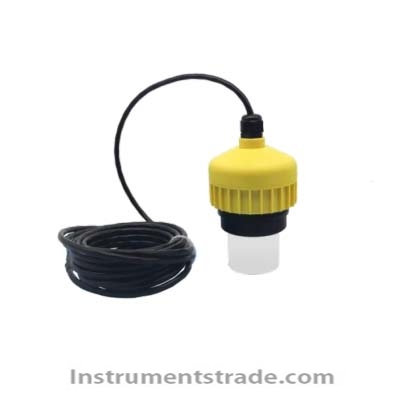

IP68 ultrasonic water level gauge Introduction: The IP68 ultrasonic water level gauge is designed for damp environments and adopts a fully sealed method. It integrates a BLE Bluetooth module and can be debugged or viewed through a mobile app. According to the on-site environment, multiple range options are available, and anti-corrosion transducers have been designed for corrosive sites. Technical parameters: Power supply: 10.8VDC~26.4VDC Measurement range: 0.20m to 5m; 0.25m～8m； 0.30～12m Two output modes are available: RS485 or 4-20mA (choose one) Configurable, built-in BLE Bluetooth, parameter reading and configuration can be achieved through a mobile app Line length: 5m Response time: 1.5 seconds Environmental temperature:- 20℃～60℃ IP68 protection level thread: NPT 2‘’、G2A（40KHz） Material: Shell (ABS), transducer (ABS or PTFE) Attention: There is currently no mold for the 40K G2A thread, only a black shell (49K for 8-10 meters, customized for 12 meters)
Introduction: The IP68 ultrasonic water level gauge is designed for damp environments and adopts a fully sealed method. It integrates a BLE Bluetooth module and can be debugged or viewed through a mobile app. According to the on-site environment, multiple range options are available, and anti-corrosion transducers have been designed for corrosive sites.
